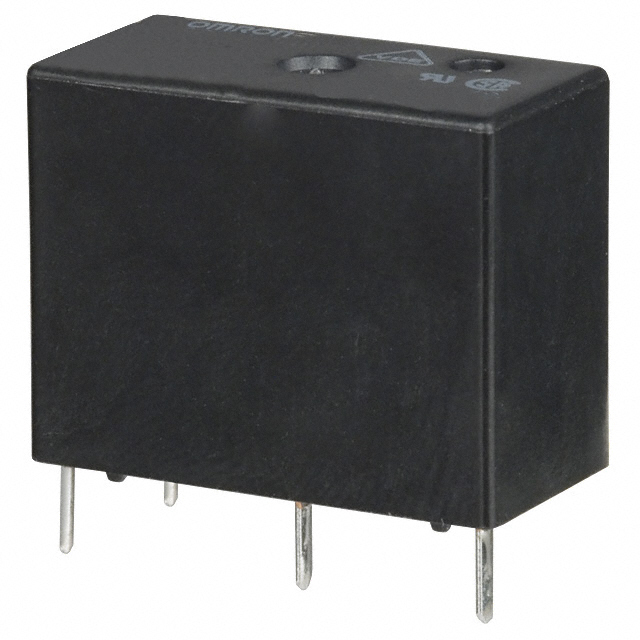

G5SB-14 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 5A 5V
| Part | Seal Rating | Release Time | Coil Type | Termination Style | Contact Rating (Current) | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Coil Current | Contact Form | Relay Type | Coil Resistance | Approval Agency | Contact Material | Coil Voltage | Must Release Voltage | Mounting Type | Operate Time | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 150 W 1250 VA | 80 mA | SPDT (1 Form C) | General Purpose | 63 Ohms | CQC CSA UR VDE | Silver Alloy | 5 VDC | 0.25 VDC | Through Hole | 10 ms | 3.75 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 150 W 1250 VA | 33.3 mA | SPDT (1 Form C) | General Purpose | 360 Ohms | CQC CSA UR VDE | Silver Alloy | 12 VDC | 0.6 VDC | Through Hole | 10 ms | 9 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 150 W 1250 VA | 22.2 mA | SPDT (1 Form C) | General Purpose | 811 Ohms | CQC CSA UR VDE | Silver Alloy | 18 VDC | 0.9 VDC | Through Hole | 10 ms | 13.5 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 150 W 1250 VA | 16.7 mA | SPDT (1 Form C) | General Purpose | 1440 Ohms | CQC CSA UR VDE | Silver Alloy | 24 VDC | 1.2 VDC | Through Hole | 10 ms | 18 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 150 W 1250 VA | 33.3 mA | SPDT (1 Form C) | General Purpose | 360 Ohms | CQC CSA UR VDE | Silver Alloy | 12 VDC | 0.6 VDC | Through Hole | 10 ms | 9 VDC |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 150 W 1250 VA | 44.4 mA | SPDT (1 Form C) | General Purpose | 202 Ohms | CQC CSA UR VDE | Silver Alloy | 9 VDC | 0.45 VDC | Through Hole | 10 ms | 6.75 VDC |
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | Non Latching | PC Pin | 5 A | 30 VDC 250 VAC | -40 °C | 70 °C | 8.3 mA | SPDT (1 Form C) | General Purpose | 5.76 kOhms | Silver Alloy | 48 VDC | 2.4 VDC | Through Hole | 10 ms | 36 VDC |
