PQA30 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 30W
| Part | Features | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Output 1 | Current - Output (Max) [Max] | Approval Agency | Applications | Efficiency | Power (Watts) | Package / Case | Type | Control Features | Voltage - Input (Min) [Min] | Standard Number | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

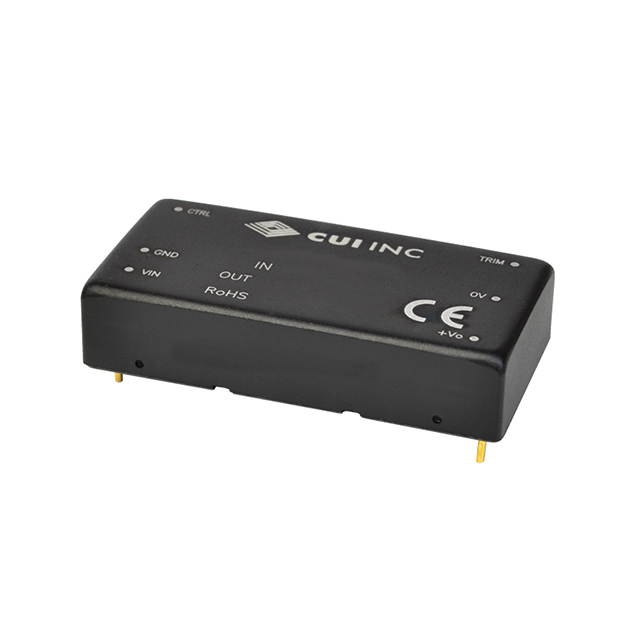

 CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 36 V | 3.3 V | 6 A | EN | ITE (Commercial) | 87 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 18 V | 55024 | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole |

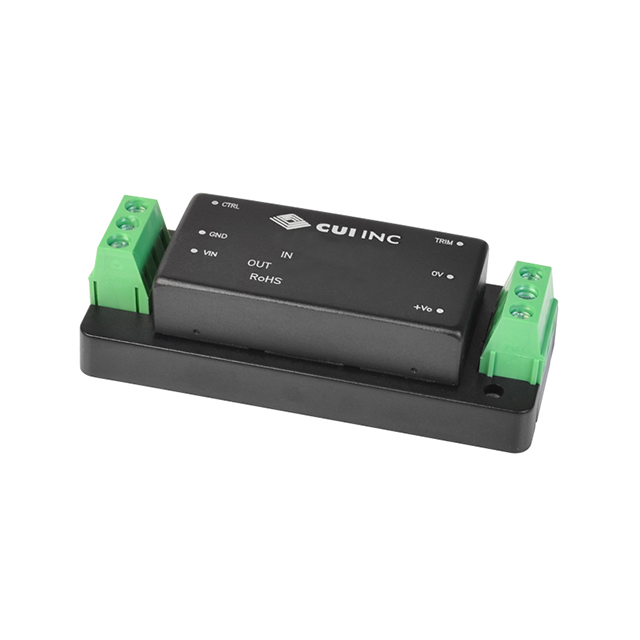

 CUI Inc. | 1 | 75 V | 5 V | 6 A | EN | ITE (Commercial) | 86 % | 30 Watts | Enclosed | 36 V | 55024 55032 | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 85 °C | -40 °C | Chassis Mount | |||
 CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 36 V | 24 V | 1.25 A | ITE (Commercial) | 89 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 18 V | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole | ||
CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 75 V | 5 V | 6 A | EN | ITE (Commercial) | 88 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 36 V | 55024 | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole |
CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 36 V | 15 V | 2 A | EN | ITE (Commercial) | 89 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 18 V | 55024 | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole |
CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 36 V | 12 V | 2.5 A | CB Scheme EN IEC UL | ITE (Commercial) | 88 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 18 V | 55024 60950-1 | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole |
CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 75 V | 3.3 V | 6 A | EN | ITE (Commercial) | 87 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 36 V | 55024 | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole |
CUI Inc. | OCP OVP Remote On/Off SCP | 1 | 75 V | 12 V | 2.5 A | EN | ITE (Commercial) | 89 % | 30 Watts | 6-DIP Module | Isolated Module | Active High Enable | 36 V | 55024 | 0.47 " | 25.4 mm | 1 " | 50.8 mm | 2 in | 11.8 mm | 1.5 kV | 85 °C | -40 C | Through Hole |
CUI Inc. | 1 | 75 V | 12 V | 2.5 A | EN | ITE (Commercial) | 87 % | 30 Watts | Enclosed | 36 V | 55024 55032 | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 85 °C | -40 °C | Chassis Mount | |||
CUI Inc. | 1 | 36 V | 3.3 V | 6 A | EN | ITE (Commercial) | 85 % | 30 Watts | Enclosed | 18 V | 55024 55032 | 0.84 in | 31.5 mm | 1.24 in | 76 mm | 2.99 in | 21.2 mm | 1.5 kV | 85 °C | -40 °C | Chassis Mount |
