R16133 Series

Catalog

N / STRAIGHT BULKHEAD JACK PANEL

Part	Voltage Rating	Body Material	Insertion Loss	Dielectric Material	Body Finish	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Housing Color	Number of Ports	Connector Style	Frequency - Max [Max]	Center Contact Material	Contact Termination	Fastening Type	Cable Group	Cable Group	Impedance	Shield Termination	Mounting Feature	Ingress Protection	Connector Type	Mounting Type	Includes
Radiall USA, Inc. R161331200W	1400 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Crimp	Threaded	225	RG-214	50 Ohms	Crimp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount

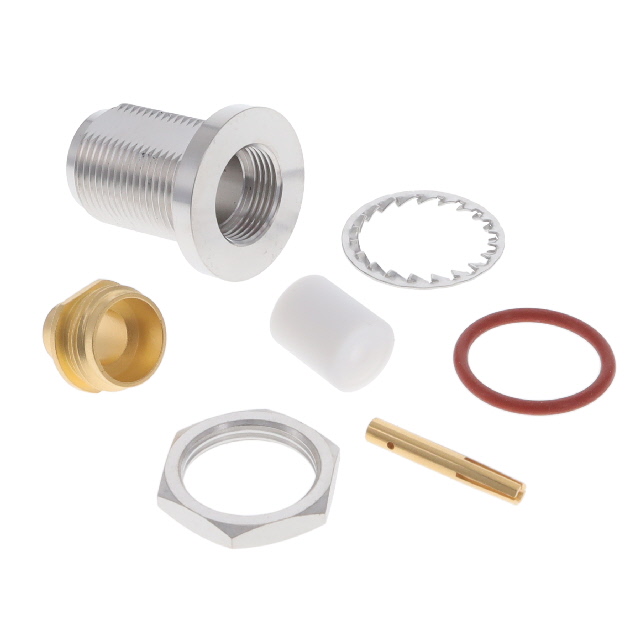

Radiall USA, Inc. R161337200	1400 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	105 ░C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded		RG-401 (.250" Semi Rigid)	50 Ohms	Solder	Bulkhead - Front Side Nut		Female Socket Jack	Panel Mount
Radiall USA, Inc. R161336000W	335 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	105 ░C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded			50 Ohms	Solder	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount
Radiall USA, Inc. R161336200	335 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	105 ░C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded			50 Ohms	Solder	Bulkhead - Rear Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount
Radiall USA, Inc. R161332000	1400 V	Brass		Polytetrafluoroethylene (PTFE)		Gold	155 C	-55 C	500		1	N Type	11 GHz	Beryllium Copper	Solder	Threaded		214 393 RG-213	50 Ohms	Clamp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gaskets 1 Lockwasher 1 Nut
Radiall USA, Inc. R161336200W	335 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	105 ░C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded			50 Ohms	Solder	Bulkhead - Rear Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount
Radiall USA, Inc. R161337200W	1400 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	105 ░C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded		RG-401 (.250" Semi Rigid)	50 Ohms	Solder	Bulkhead - Front Side Nut		Female Socket Jack	Panel Mount
Radiall USA, Inc. R161335200W	335 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded		RG-405 (.085" Semi Rigid)	50 Ohms	Solder	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount

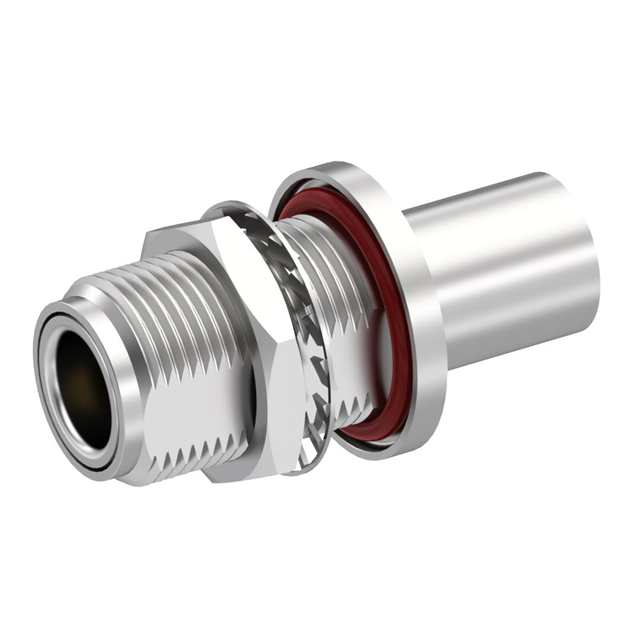

Radiall USA, Inc. R161331060	1000 VDC	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	500	Silver	1	N Type	11 GHz		Crimp	Threaded		LMR-400	50 Ohms	Crimp	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount

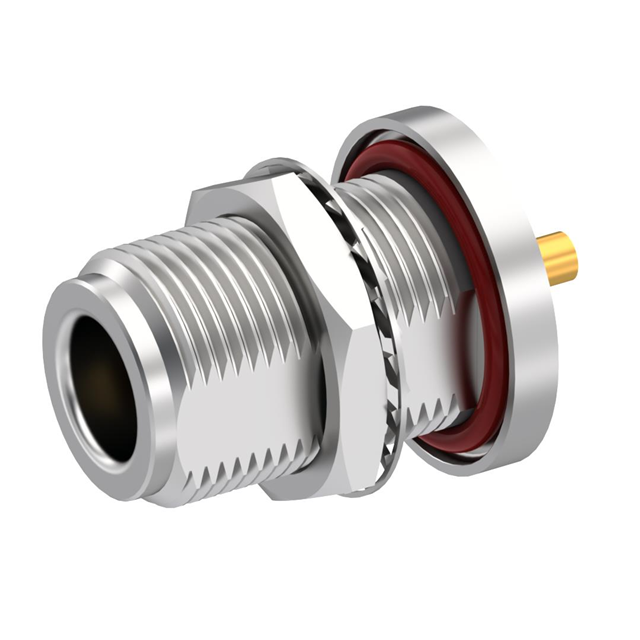

Radiall USA, Inc. R161335200	335 V	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 C	-55 C	500	Silver	1	N Type	11 GHz	Beryllium Copper	Solder	Threaded		RG-405 (.085" Semi Rigid)	50 Ohms	Solder	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Female Socket Jack	Panel Mount
