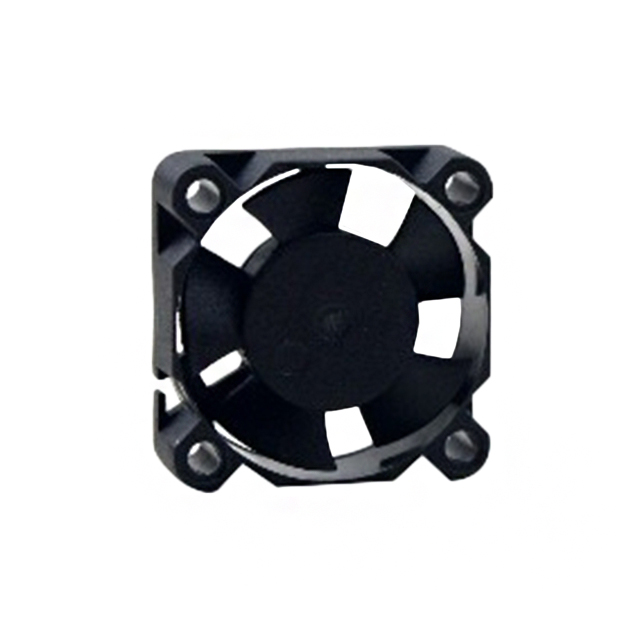

MR3010 Series

Catalog

FAN AXIAL 30X10MM 12VDC WIRE

Part	Material - Blade	Material - Frame	Air Flow	Air Flow	Termination	Features	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Fan Type	RPM	Bearing Type	Static Pressure	Static Pressure	Voltage - Rated	Approval Agency	Noise	Weight	Weight	Current Rating (Amps)
Mechatronics Fan Group MR3010E12B1-RSR	Plastic	Plastic	7.7 CFM	0.216 m³/min	3 Wire Leads	Auto Restart Speed Sensor (Tach)	30 mm	30 mm	10 mm	Tubeaxial	11500 RPM	Ball	0.38 in H2O	94.6 Pa	12 VDC	CE cUL TUV UL	34 dB(A)	8.16 g	0.018 lb
Mechatronics Fan Group MR3010L05D-RSR	Plastic	Plastic	4.1 CFM	0.115 m³/min	2 Wire Leads	Auto Restart	30 mm	30 mm	10 mm	Tubeaxial	6000 RPM	Sleeve	0.11 in H2O	27.4 Pa	5 V	CE cUL TUV UL	20.5 dB(A)	8.16 g	0.018 lb	70 mA
Mechatronics Fan Group MR3010H12B2-RSR	Plastic	Plastic	6.4 CFM	0.179 mł/min	3 Wire Leads	Auto Restart Locked Rotor Sensor	30 mm	30 mm	10 mm	Tubeaxial	10000 RPM	Ball	0.26 in H2O	64.8 Pa	12 VDC	CE cUL TUV UL	31.6 dB(A)	8.16 g	0.018 lb	0.09 A
Mechatronics Fan Group MR3010L05B1-RSR	Plastic	Plastic	4.1 CFM	0.115 m³/min	3 Wire Leads	Auto Restart Speed Sensor (Tach)	30 mm	30 mm	10 mm	Tubeaxial	6000 RPM	Ball	0.11 in H2O	27.4 Pa	5 V	CE cUL TUV UL	20.5 dB(A)	8.16 g	0.018 lb	70 mA

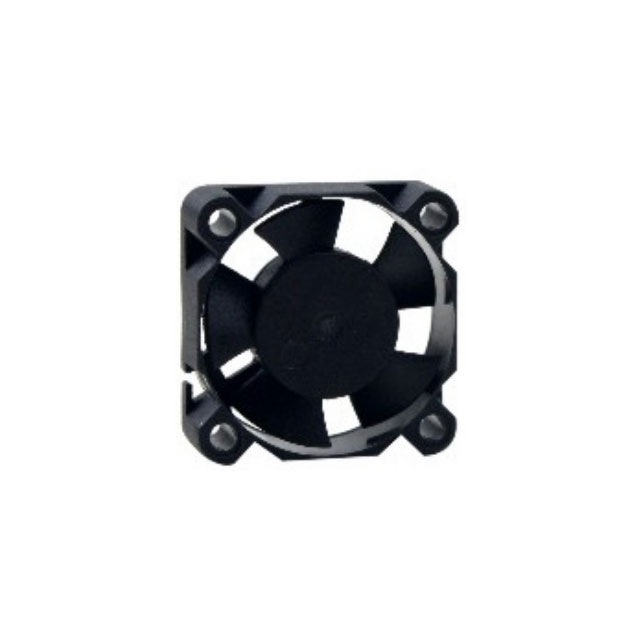

Mechatronics Fan Group MR3010H05B1+6-RSR	Plastic	Plastic	6.4 CFM	0.179 mł/min	4 Wire Leads	Auto Restart PWM Control Speed Sensor (Tach)	30 mm	30 mm	10 mm	Tubeaxial	10000 RPM	Ball	0.26 in H2O	64.8 Pa	5 V		31.6 dB(A)
Mechatronics Fan Group MR3010H05B2-RSR	Plastic	Plastic	6.4 CFM	0.179 mł/min	3 Wire Leads	Auto Restart Locked Rotor Sensor	30 mm	30 mm	10 mm	Tubeaxial	10000 RPM	Ball	0.26 in H2O	64.8 Pa	5 V	CE cUL TUV UL	31.6 dB(A)	8.16 g	0.018 lb
Mechatronics Fan Group MR3010L12B1-RSR	Plastic	Plastic	4.1 CFM	0.115 m³/min	3 Wire Leads	Auto Restart Speed Sensor (Tach)	30 mm	30 mm	10 mm	Tubeaxial	6000 RPM	Ball	0.11 in H2O	27.4 Pa	12 VDC	CE cUL TUV UL	20.5 dB(A)	8.16 g	0.018 lb	50 mA
Mechatronics Fan Group MR3010E12B-RSR	Plastic	Plastic	7.7 CFM	0.216 m³/min	2 Wire Leads	Auto Restart	30 mm	30 mm	10 mm	Tubeaxial	11500 RPM	Ball	0.38 in H2O	94.6 Pa	12 VDC	CE cUL TUV UL	34 dB(A)	8.16 g	0.018 lb
Mechatronics Fan Group MR3010E12B2-RSR	Plastic	Plastic	7.7 CFM	0.216 m³/min	3 Wire Leads	Auto Restart Locked Rotor Sensor	30 mm	30 mm	10 mm	Tubeaxial	11500 RPM	Ball	0.38 in H2O	94.6 Pa	12 VDC	CE cUL TUV UL	34 dB(A)	8.16 g	0.018 lb

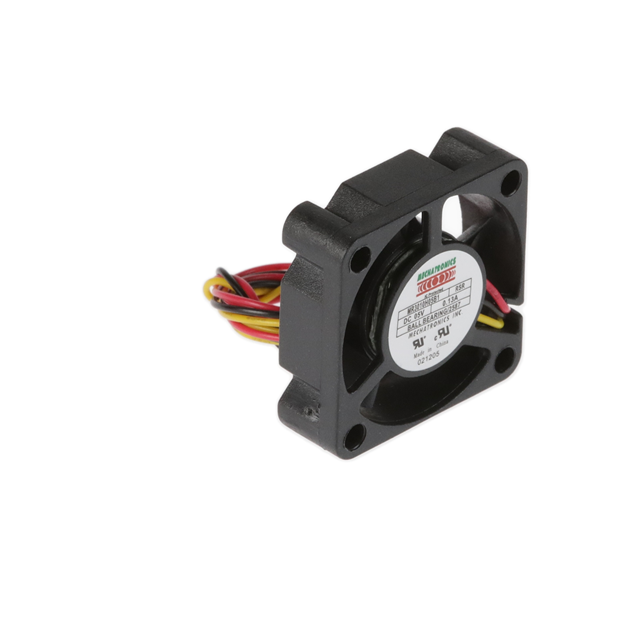

Mechatronics Fan Group MR3010H05B1-RSR	Plastic	Plastic	6.4 CFM	0.179 mł/min	3 Wire Leads	Auto Restart Speed Sensor (Tach)	30 mm	30 mm	10 mm	Tubeaxial	10000 RPM	Ball	0.26 in H2O	64.8 Pa	5 V	CE cUL TUV UL	31.6 dB(A)	8.16 g	0.018 lb
