R12554 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

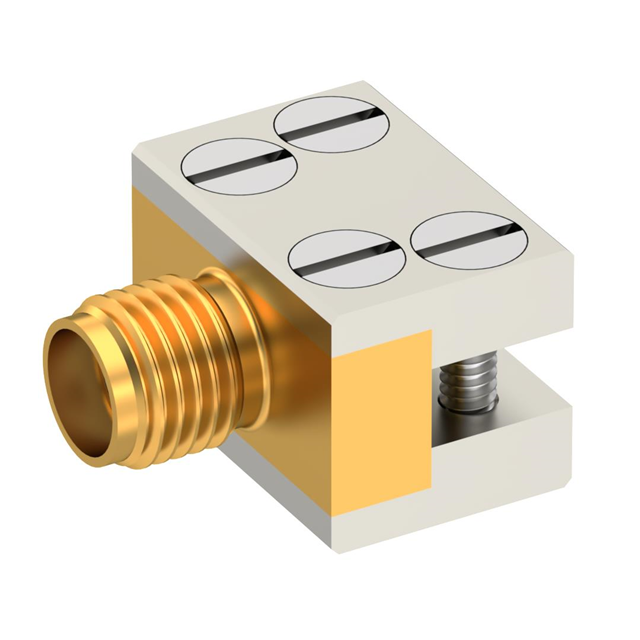

SMA / END LAUNCH FLANGE JACK REC
| Part | Body Material | Voltage Rating | Mating Cycles | Body Finish | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Fastening Type | Connector Type | Number of Ports | Contact Termination | Connector Style | Impedance | Shield Termination | Housing Color | Center Contact Material | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Beryllium Copper | 600 V | 500 | Gold | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | Gold | Threaded | Female Socket Jack | 1 | Compression | SMA | 50 Ohms | Screw | Gold | Beryllium Copper | Board Edge End Launch | 18 GHz |
