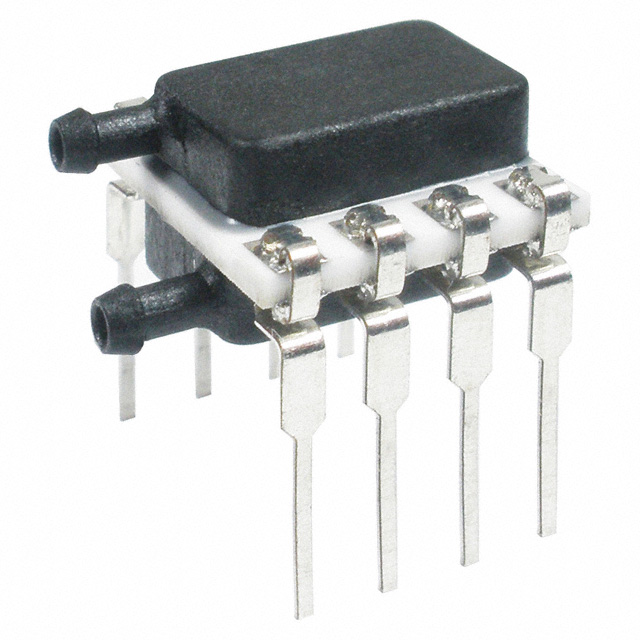

TSCDRRN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE SENSOR -5PSI TO 5PSI DIFFERENTIAL 8-PIN DIP MODULE

Part	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Features	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Port Size	Termination Style	Applications	Output Type	Mounting Type	Port Style	Output [Max]	Output	Maximum Pressure	Maximum Pressure	Accuracy	Package / Case	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Output
Honeywell Sensing and Productivity Solutions TSCDRRN005PDUCV	Differential	12 V	1.5 V	8-DIP	Temperature Compensated	5 PSI	34.47 kPa	85 °C	-40 C	0.08 "	Dual Male Tube	1.93 mm	PC Pin	Board Mount	Wheatstone Bridge	Through Hole	Barbed	50 mV	5V	30 PSI	206.84 kPa	0.15 %	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm
Honeywell Sensing and Productivity Solutions TSCDRRN001PGUCV	Vented Gauge	12 V	1.5 V	8-DIP	Temperature Compensated	1 PSI	6.89 kPa	85 °C	-40 C	0.08 "	Dual Male Tube	1.93 mm	PC Pin	Board Mount	Wheatstone Bridge	Through Hole	Barbed	7.5 mV				0.2 %	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	87.56 kPa	12.7 PSI
Honeywell Sensing and Productivity Solutions TSCDRRN001PDUCV	Differential	12 V	1.5 V	8-DIP	Temperature Compensated			85 °C	-40 C	0.08 "	Dual Male Tube	1.93 mm	PC Pin	Board Mount	Wheatstone Bridge	Through Hole	Barbed	15 mV		12.5 PSI	86.18 kPa	0.2 %	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm			±1PSI (±6.89kPa)
Honeywell Sensing and Productivity Solutions TSCDRRN015PDUCV	Differential	12 V	1.5 V	8-DIP	Temperature Compensated	15 PSI	103.42 kPa	85 °C	-40 C	0.08 "	Dual Male Tube	1.93 mm	PC Pin	Board Mount	Wheatstone Bridge	Through Hole	Barbed	52.5 mV		60 PSI		0.15 %	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm				5 V
