1971946 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

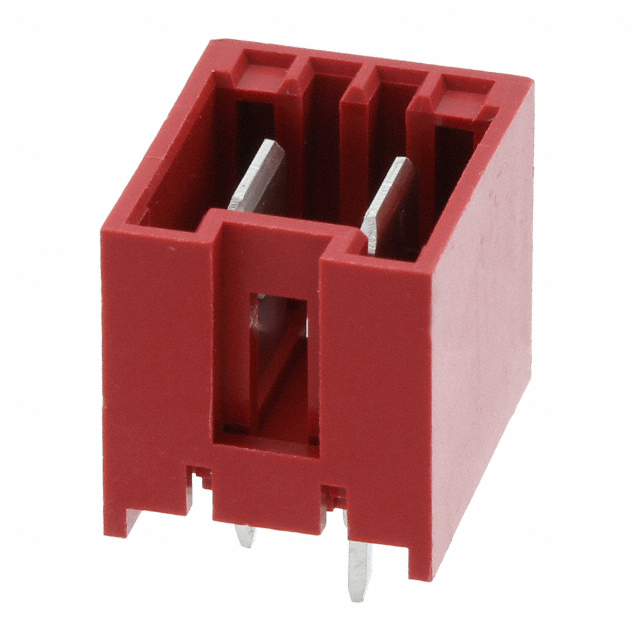

CONN HEADER VERT 2POS 5MM
| Part | Insulation Material | Voltage Rating | Style | Shrouding | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Mounting Type | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Material | Insulation Height | Insulation Height | Applications | Features | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions Loaded | Connector Type | Insulation Color | Termination | Number of Rows | Material Flammability Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 250 VAC | Board to Cable/Wire | Shrouded - 4 Wall | 2 | -40 °C | 120 °C | Tin | Through Hole | Latch Holder | 3.5 mm | 0.138 in | Copper Alloy | 12.8 mm | 0.504 in | General Purpose | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Rectangular | All | Header | Red | Solder | 1 | UL94 V-0 | Tab |
