ECW-F6203 Series

Catalog

ECWF(L), MET POLYPROPYLENE FILM CAP RADI ROHS COMPLIANT: YES

Part	Applications	Capacitance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Termination	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECW-F6203HLB	High Frequency Switching	0.02 µF	Polypropylene (PP) Metallized	-40 C	105 ░C	Radial	Through Hole	6.5 mm	12.5 mm	0.256 "	0.492 "	0.295 in	7.5 mm	PC Pins	3 %	0.563 "	14.3 mm
Panasonic Electronic Components ECW-F6203RJL	High Frequency Switching	0.02 µF	Polypropylene (PP) Metallized	-40 C	105 ░C	Radial	Through Hole	6.5 mm	12.5 mm	0.256 "	0.492 "	0.295 in	7.5 mm	PC Pins	5 %	0.563 "	14.3 mm

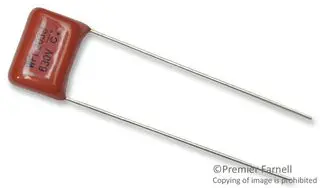

Panasonic Electronic Components ECW-F6203JL	High Frequency Switching	0.02 µF	Polypropylene (PP) Metallized	-40 C	105 ░C	Radial	Through Hole	6.5 mm	12.5 mm	0.256 "	0.492 "	0.394 in	10 mm	PC Pins	5 %			223 V	0.425 in	10.8 mm
Panasonic Electronic Components ECW-F6203JLB	High Frequency Switching	0.02 µF	Polypropylene (PP) Metallized	-40 C	105 ░C	Radial	Through Hole	6.5 mm	12.5 mm	0.256 "	0.492 "	0.295 in	7.5 mm	PC Pins	5 %	0.563 "	14.3 mm
Panasonic Electronic Components ECW-F6203HL	High Frequency Switching	0.02 µF	Polypropylene (PP) Metallized	-40 C	105 ░C	Radial	Through Hole	6.5 mm	12.5 mm	0.256 "	0.492 "	0.394 in	10 mm	PC Pins	3 %			223 V	0.425 in	10.8 mm
