TPSM831D31 Series

8V-14V input, 120A + 40A dual output PMBus module with AVS and monitoring

Catalog

8V-14V input, 120A + 40A dual output PMBus module with AVS and monitoring

Part	Features	Efficiency	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Mounting Type	Applications	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Number of Outputs	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]

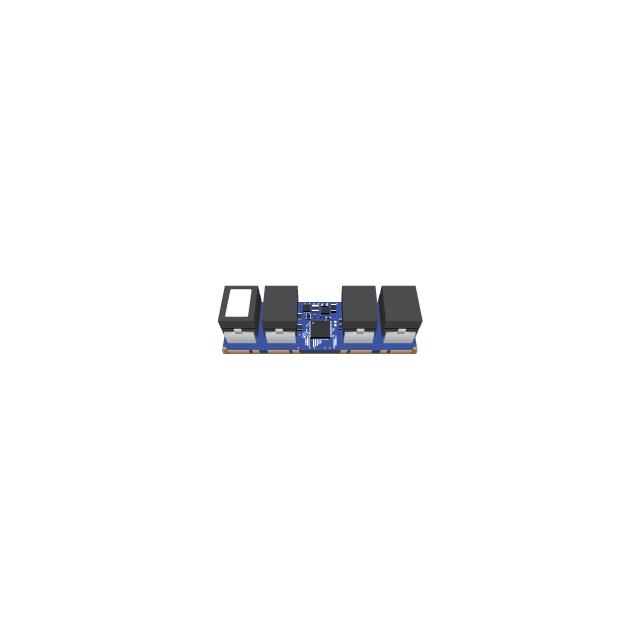

Texas Instruments TPSM831D31MOA	Adjustable Output I2C Interface PMBus™ Remote Sense Standby Output	92 %	1.52 V	0.25 V	Surface Mount	ITE (Commercial)	40 A 120 A	48 mm	0.47 "	12 mm	15 mm	1.89 in	0.59 in	28-SMD Module	8 V	Non-Isolated PoL Module	14 V	2	28-QFM (48x15)	-40 °C	105 C

Catalog

8V-14V input, 120A + 40A dual output PMBus module with AVS and monitoring

Key Features

• Input voltage range: 8 V to 14 VDual output: 120 A (3-phase) + 40 A (1-phase)Output voltage range: 0.25 V to 1.52 VProgrammable in 5-mV stepsDifferential remote sense±0.5% Vref accuracy with remote sensePMBus InterfaceProgrammable VOUT, UVLO, fault limitsVIN, VOUT, IOUT, temperature telemetrySupports up to 1-MHz bus speedOn-chip non-volatile configuration memoryUltra-fast transient responseSwitching frequency range: 350 kHz to 700 kHz15-mm × 48-mm footprint and 12-mm heightEfficiencies up to 95%Dual power good outputsOvercurrent, overvoltage, overtemperature protectionOperating IC junction range: –40°C to 125°COperating ambient range: –40°C to 105°CInput voltage range: 8 V to 14 VDual output: 120 A (3-phase) + 40 A (1-phase)Output voltage range: 0.25 V to 1.52 VProgrammable in 5-mV stepsDifferential remote sense±0.5% Vref accuracy with remote sensePMBus InterfaceProgrammable VOUT, UVLO, fault limitsVIN, VOUT, IOUT, temperature telemetrySupports up to 1-MHz bus speedOn-chip non-volatile configuration memoryUltra-fast transient responseSwitching frequency range: 350 kHz to 700 kHz15-mm × 48-mm footprint and 12-mm heightEfficiencies up to 95%Dual power good outputsOvercurrent, overvoltage, overtemperature protectionOperating IC junction range: –40°C to 125°COperating ambient range: –40°C to 105°C

Description

The TPSM831D31 is a PMBus™-controlled, dual-output, 4-phase power module that combines a high-performance D-CAP+™ controller with four high-efficiency Smart Power Stages, and low-loss inductors, into a rugged, thermally enhanced surface-mount package. The user supplies the input and output capacitors and a few passive components to complete the system. The first output is a 3-phase power stage that can deliver up to 120 A of continuous output current. The second output is a single phase power stage that can deliver up to 40 A of output current. The PMBus interface provides for converter configuration of each VOUT, UVLO, soft-start, overcurrent, and thermal shutdown parameters. The interface provides support for telemetry that can report the actual input voltage, output voltage, output current, and device temperature. The device can report input and output power. The device supports standard PMBuswarningandfaultfunctions. The device supports PMBus communication speeds up to 1 MHz, with 1.8-V or 3.3-V logic levels, as detailed in Section 4.3 of SMBus Specification V3.0. The module supports a subset of the commands in the PMBus 1.3 specification. The TPSM831D31 is a PMBus™-controlled, dual-output, 4-phase power module that combines a high-performance D-CAP+™ controller with four high-efficiency Smart Power Stages, and low-loss inductors, into a rugged, thermally enhanced surface-mount package. The user supplies the input and output capacitors and a few passive components to complete the system. The first output is a 3-phase power stage that can deliver up to 120 A of continuous output current. The second output is a single phase power stage that can deliver up to 40 A of output current. The PMBus interface provides for converter configuration of each VOUT, UVLO, soft-start, overcurrent, and thermal shutdown parameters. The interface provides support for telemetry that can report the actual input voltage, output voltage, output current, and device temperature. The device can report input and output power. The device supports standard PMBuswarningandfaultfunctions. The device supports PMBus communication speeds up to 1 MHz, with 1.8-V or 3.3-V logic levels, as detailed in Section 4.3 of SMBus Specification V3.0. The module supports a subset of the commands in the PMBus 1.3 specification.
