726-108 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 108POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Gender	Termination	Number of Rows [custom]	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Read Out	Card Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch	Pitch

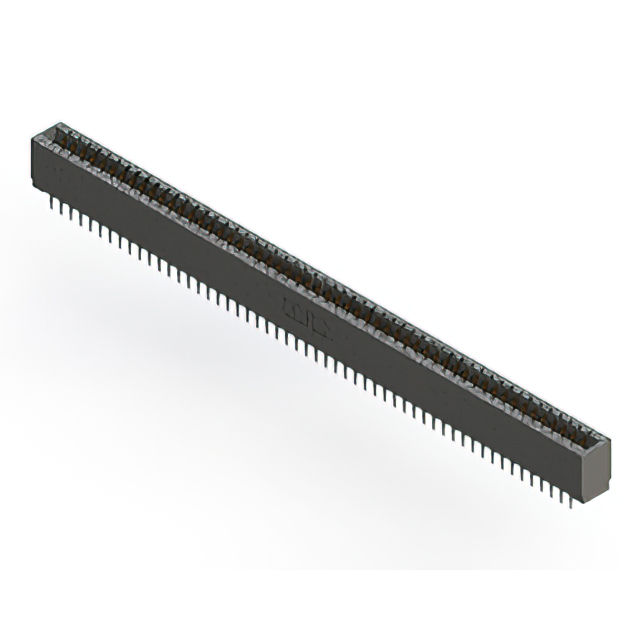

EDAC Inc. 726-108-525-201	Polyester Thermoplastic	2	Female	Press-Fit	2	Copper Alloy	Cantilever	-40 C	105 ░C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Dual	Non Specified - Dual Edge	Through Hole	108	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in
EDAC Inc. 726-108-553-201	Polyester Thermoplastic	2	Female	Press-Fit Wire Wrap	2	Copper Alloy	Cantilever	-40 C	105 ░C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Dual	Non Specified - Dual Edge	Through Hole	108	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in
EDAC Inc. 726-108-545-201	Polyester Thermoplastic	2	Female	Press-Fit Wire Wrap	2	Copper Alloy	Cantilever	-40 C	105 ░C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Dual	Non Specified - Dual Edge	Through Hole	108	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in

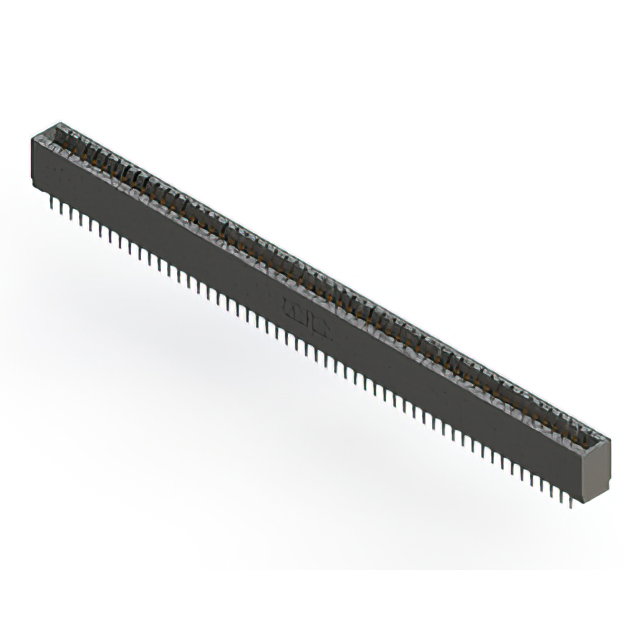

EDAC Inc. 726-108-520-201	Polyester Thermoplastic	2	Female	Press-Fit	2	Copper Alloy	Cantilever	-40 C	105 ░C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Dual	Non Specified - Dual Edge	Through Hole	108	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in
EDAC Inc. 726-108-527-201	Polyester Thermoplastic	2	Female	Press-Fit	2	Copper Alloy	Cantilever	-40 C	105 ░C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Dual	Non Specified - Dual Edge	Through Hole	108	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in
EDAC Inc. 726-108-540-201	Polyester Thermoplastic	2	Female	Press-Fit Wire Wrap	2	Copper Alloy	Cantilever	-40 C	105 ░C	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Dual	Non Specified - Dual Edge	Through Hole	108	30 Áin	0.76 Ám	Black	3.18 mm	0.125 in
