745-086 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 86POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Positions	Mounting Type	Contact Finish	Pitch	Pitch	Read Out	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Color	Number of Positions/Bay/Row	Contact Type	Card Type	Termination
EDAC Inc. 745-086-525-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit

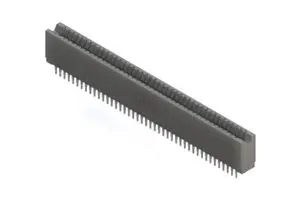

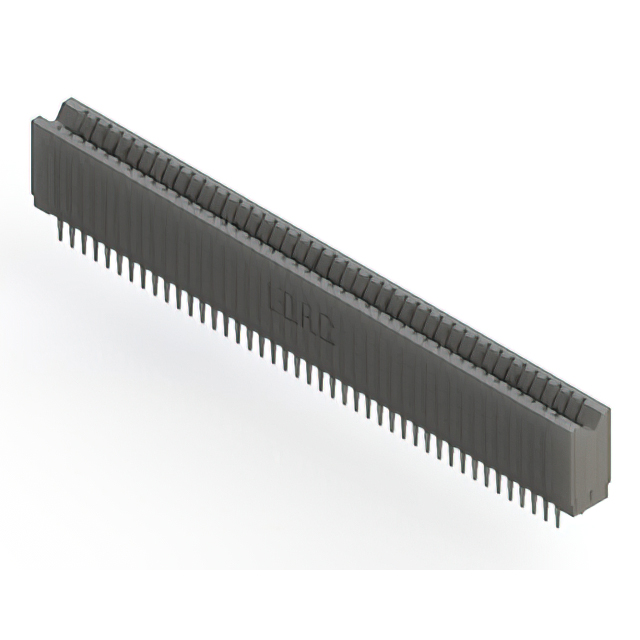

EDAC Inc. 745-086-520-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-086-540-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit Wire Wrap
EDAC Inc. 745-086-545-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-086-520-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-086-545-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-086-522-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	86	Through Hole	Gold	0.1 "	2.54 mm	Dual	2	30 Áin	0.76 Ám	-40 C	105 ░C	Female	Black	43	Cantilever	Non Specified - Dual Edge	Press-Fit
