DST Series

Power Transformers 50\60 Hz, Laminated Transformer

Manufacturer: Signal Transformer

Catalog

Power Transformers 50\60 Hz, Laminated Transformer

Catalog

Power Transformers 50\60 Hz, Laminated Transformer

Part	Mounting Type	Secondary Winding(s)	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Current - Output (Max)	Weight	Weight	Voltage - Primary	Voltage - Isolation	Center Tap	Power - Max [Max]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Primary Winding(s)	Type	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Weight [custom]	Weight [custom]	Height - Seated (Max) [Max]

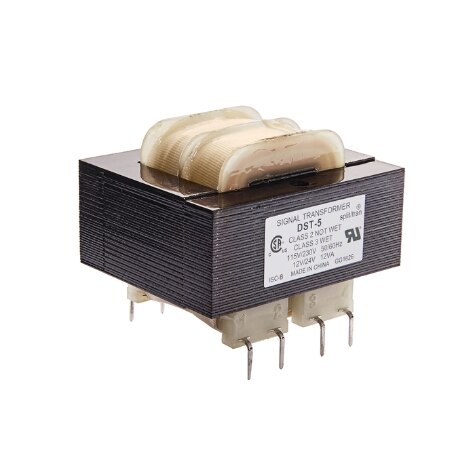

Signal Transformer DST-5-24	Through Hole	Dual	PC Pin	39.6 mm	47.8 mm	36.9 mm	1 A 500 mA	0.7 lb	317.51 g	115 V 230 V	2500 Vrms		12 VA	24 V	12 V	Dual	Laminated Core
Signal Transformer DST-5-36	Through Hole	Dual	PC Pin	39.6 mm	47.8 mm	36.9 mm	350 mA 700 mA	0.7 lb	317.51 g	115 V 230 V	2500 Vrms		12 VA	36 V	18 V	Dual	Laminated Core
Signal Transformer DST-3-24	Through Hole	Dual	PC Pin	28.6 mm	34.9 mm					115 V 230 V	2500 Vrms		2.4 VA	24 V	12 V	Dual	Laminated Core	100 mA	200 mA	113.4 g	0.25 lbs	30.8 mm
