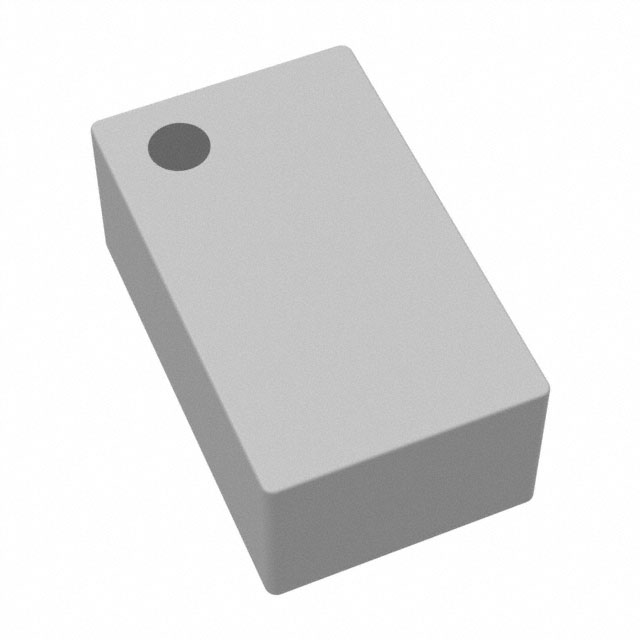

HTEH20120 Series

Catalog

FIXED IND 1UH 3.5A 55 MOHM SMD

Part	Inductance	Current - Saturation (Isat)	Inductance Frequency - Test	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Current Rating (Amps)	Package / Case	Shielding	Mounting Type	Supplier Device Package	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	DC Resistance (DCR)
Delta Electronics/Cyntec HTEH20120H-1R0MSR	1 µH	3.3 A	1 MHz	20 %	0.079 in	0.047 in	1.2 mm	2 mm	0.031 in	0.8 mm	3.5 A	0805	Shielded	Surface Mount	0805	55 mOhm	-55 C	125 °C	Metal
Delta Electronics/Cyntec HTEH20120H-R47MSR	470 nH	4.3 A	1 MHz	20 %	0.079 in	0.047 in	1.2 mm	2 mm	0.031 in	0.8 mm	3.9 A	0805	Shielded	Surface Mount	0805		-55 C	125 °C	Metal	33 mOhm
