503366 Series
Manufacturer: Molex
Beta
⌘K

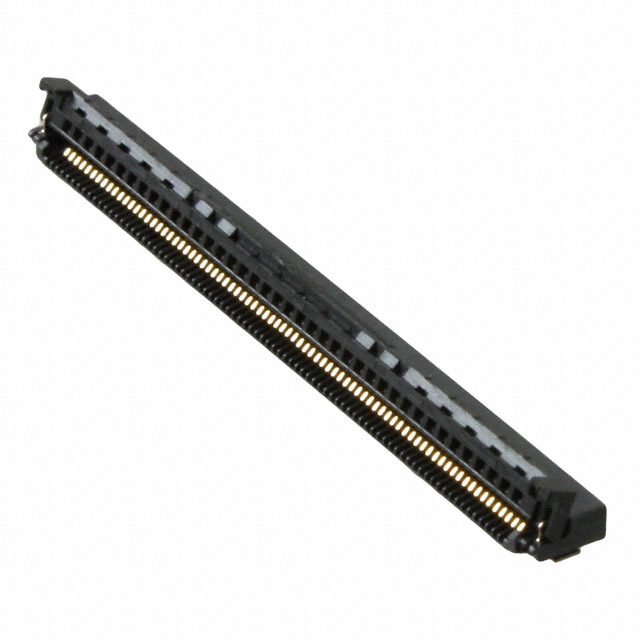

0.50MM PITCH EASY-ON FFC/FPC CONNECTOR, SURFACE MOUNT, RIGHT-ANGLE, BOTTOM CONTACT, 60 CIRCUITS, HEIGHT 2.00MM (.079"), GOLD (AU) PLATING
| Part | Material Flammability Rating | Connector/Contact Type | Features | Actuator Material | Cable End Type | Contact Material | Flat Flex Type | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | FFC, FCB Thickness | Voltage Rating | Termination | Locking Feature | Number of Positions | Housing Material | Height Above Board | Height Above Board | Mounting Type | Actuator Color | Housing Color | Current Rating (Amps) | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | Contacts Bottom | Solder Retention | Polyphenylene Sulfide (PPS) Glass Filled | Tabbed Tapered | Phosphor Bronze | FFC FPC | 0.02 " | 0.5 mm | 85 °C | -20 ░C | Gold | 0.3 mm | 50 V | Solder | Flip Lock | 60 | Glass Filled Liquid Crystal Polymer (LCP) | 2 mm | 0.079 in | Right Angle Surface Mount | ||||
 Molex | UL94 V-0 | Contacts Bottom | Solder Retention | Polyphenylene Sulfide (PPS) Glass Filled | Tabbed Tapered | Phosphor Bronze | FFC FPC | 0.02 " | 0.5 mm | 85 °C | -20 ░C | Gold | 0.3 mm | 50 V | Solder | Flip Lock | 80 | Glass Filled Liquid Crystal Polymer (LCP) | 2 mm | 0.079 in | Right Angle Surface Mount | Black | Black | 0.5 A 500 mA | 20 |
