8310 Series
Manufacturer: Belden Inc.
Beta
⌘K

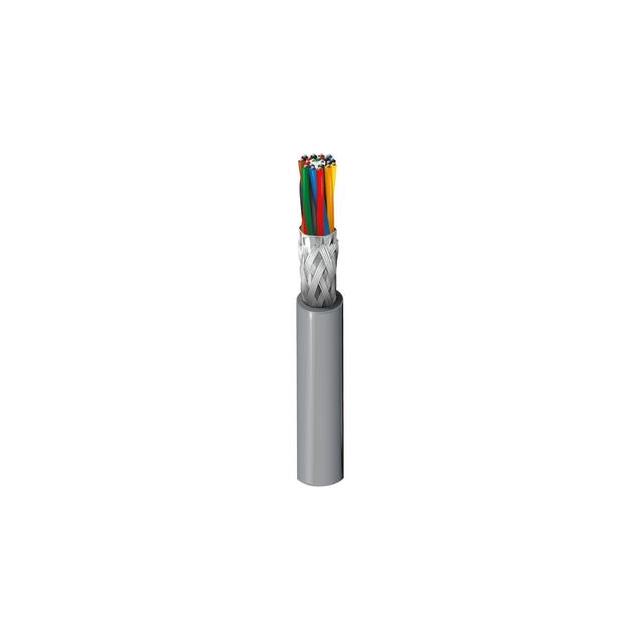

MULTI-PAIR 20COND 22AWG
| Part | Shield Coverage | Shield Material | Usage | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Conductor Material | Ratings | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket Color | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Computer | 300 VDC | 80 °C | -30 ░C | 304.8 m | 1000 ft | 30 AWG | 7 | Braid Foil | Copper Tinned | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | 20 | 11.18 mm | 0.44 " | 22 AWG | Chrome | Multi-Pair |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Computer | 300 VDC | 80 °C | -30 ░C | 152.4 m | 500 ft | 30 AWG | 7 | Braid Foil | Copper Tinned | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | 20 | 11.18 mm | 0.44 " | 22 AWG | Chrome | Multi-Pair |
