R12517 Series

Catalog

SMA / RIGHT ANGLE PLUG CRIMP OR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Plating	Mating Cycles	Body Finish	Voltage Rating	Body Material	Shield Termination	Impedance	Connector Style	Mounting Type	Cable Group	Contact Termination	Frequency - Max [Max]	Center Contact Material	Housing Color	Fastening Type	Connector Type	Number of Ports	Cable Group
Radiall USA, Inc. R125172000W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500	Gold	250 V	Stainless Steel	Solder	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	188 316 RG-174	Crimp Solder	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1
Radiall USA, Inc. R125174000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500	Gold	250 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-316DS	Crimp	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1

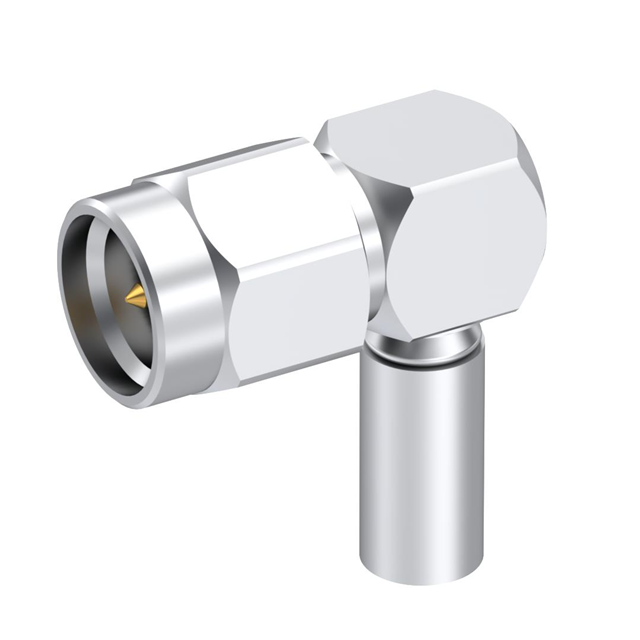

Radiall USA, Inc. R125174011	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold			250 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-316DS	Crimp	12.4 GHz	Brass	Silver	Threaded	Plug Male Pin	1
Radiall USA, Inc. R125170402W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500	Gold	170 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-178	Crimp	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1	196
Radiall USA, Inc. R125176000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500	Gold	335 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	223 400 RG-142	Crimp Solder	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1
Radiall USA, Inc. R125174000W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500	Gold	250 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-316DS	Crimp	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1

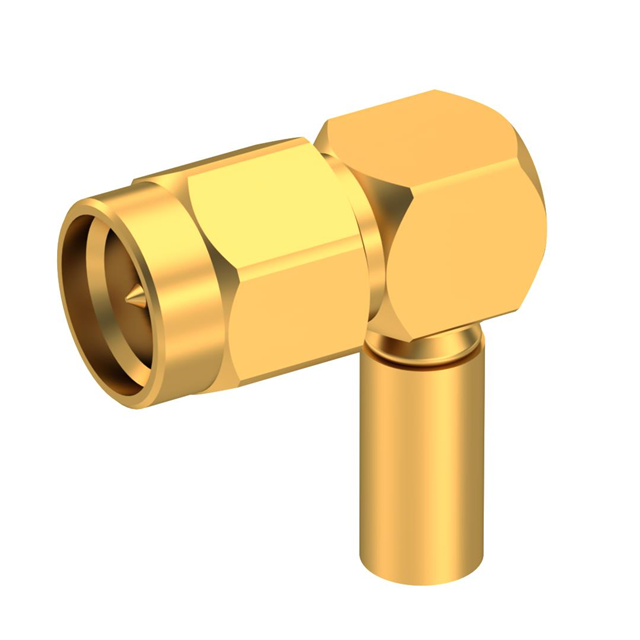

Radiall USA, Inc. R125175000W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold		Gold	335 V	Stainless Steel	Solder	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	141 RD-58	Crimp Solder	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1

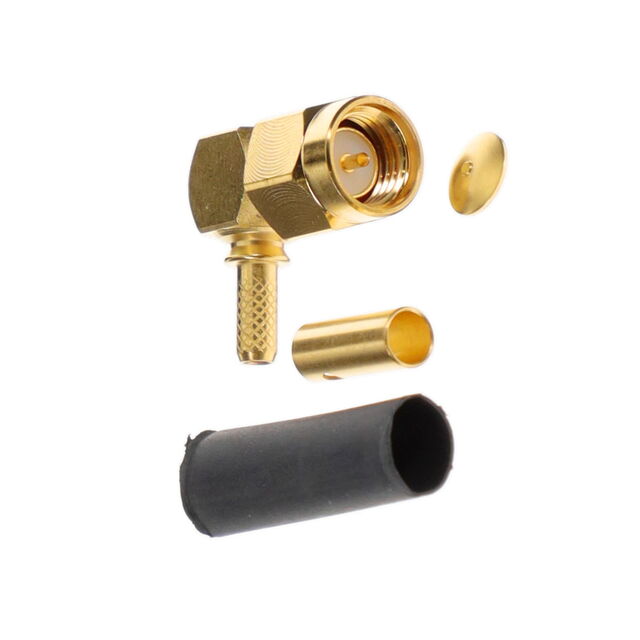

Radiall USA, Inc. R125172000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500	Gold	250 V	Stainless Steel	Solder	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-174	Crimp Solder	12.4 GHz	Brass	Gold	Threaded	Plug Male Pin	1	316

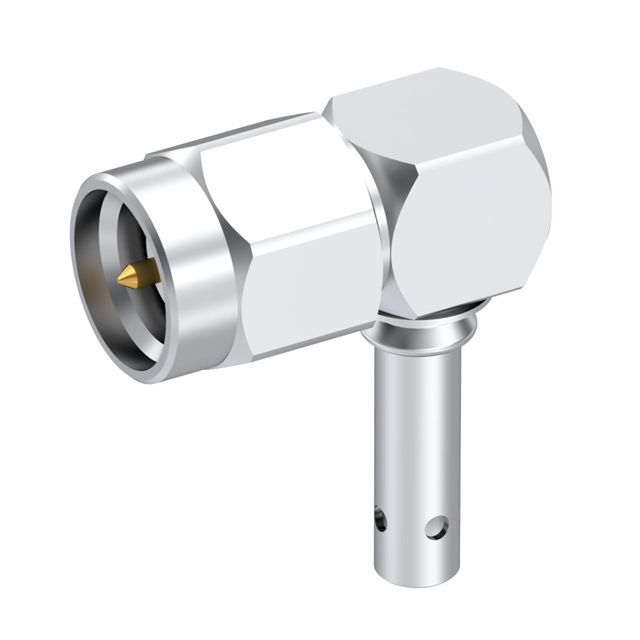

Radiall USA, Inc. R125172001	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500		335 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-174	Crimp	12.4 GHz	Brass	Silver	Threaded	Plug Male Pin	1	316
Radiall USA, Inc. R125172001W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	500		250 V	Stainless Steel	Crimp	50 Ohms	SMA	Free Hanging (In-Line) Right Angle	RG-174	Crimp	12.4 GHz	Brass	Silver	Threaded	Plug Male Pin	1	316
