BMR480 Series

Catalog

DC DC CONVERTER 12.1V 908W

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Mounting Type	Voltage - Output 1	Applications	Package / Case	Standard Number	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Voltage - Isolation	Power (Watts)	Current - Output (Max) [Max]	Control Features	Voltage - Input (Max) [Max]	Approval Agency	Features
Flex Power Modules BMR4802112/032	Quarter Brick	-40 °C	125 °C	1	Through Hole	12.1 V	ITE (Commercial)	Quarter Brick	62368-1	96.9 %	40 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	908 W	75 A	Active Low Enable	60 V	CB CSA IEC TUV UL

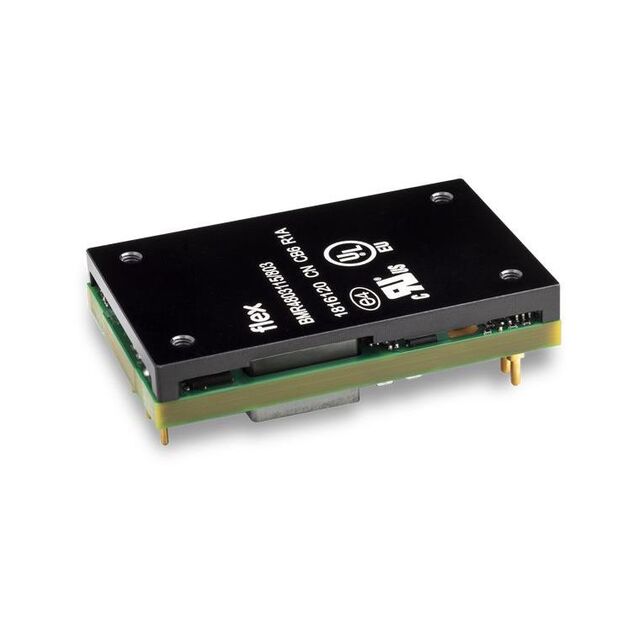

Flex Power Modules BMR4800114/003	Quarter Brick	-40 °C	125 °C	1	Through Hole	10.4 V	ITE (Commercial)	Quarter Brick	62368-1	97.3 %	40 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	1 kW	96.2 A	Active Low Enable	60 V	CB CSA IEC TUV UL	Adjustable Output Baseplate Remote On/Off

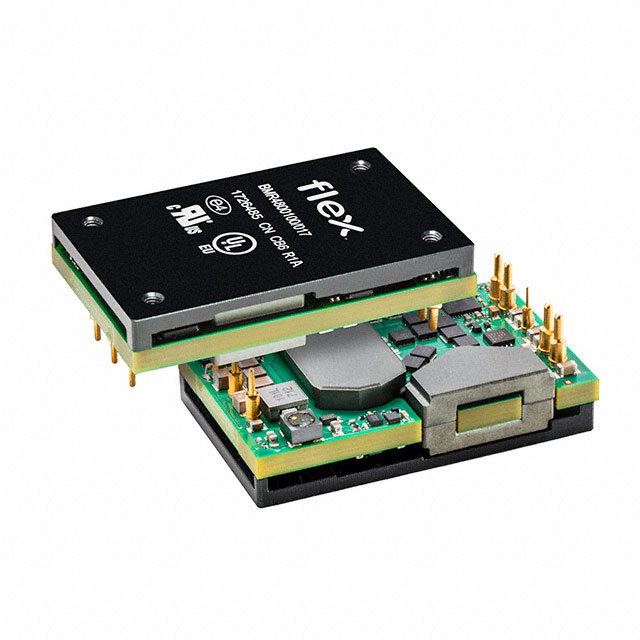

Flex Power Modules BMR4800100/017	Quarter Brick	-40 °C	125 °C	1	Through Hole	10.4 V	ITE (Commercial)	Quarter Brick	62368-1	97.3 %	45 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	1 kW	96.2 A	Active Low Enable	56 V	CB CSA IEC TUV UL	Adjustable Output Baseplate Load Sharing Remote On/Off
Flex Power Modules BMR4800102/002	Quarter Brick	-40 °C	125 °C	1	Through Hole	12 V	ITE (Commercial)	Quarter Brick	62368-1	96.9 %	40 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	900 W	75 A	Active Low Enable	60 V	CB CSA IEC TUV UL	Adjustable Output Baseplate Remote On/Off
Flex Power Modules BMR4800106/005	Quarter Brick	-40 °C	125 °C	1	Through Hole	12 V	ITE (Commercial)	Quarter Brick	62368-1	97.4 %	45 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	1.3 kW	108.3 A	Active Low Enable	60 V	CB CSA IEC TUV UL	Adjustable Output Baseplate Remote On/Off
Flex Power Modules BMR4800100/001	Quarter Brick	-40 °C	125 °C	1	Through Hole	10.4 V	ITE (Commercial)	Quarter Brick	62368-1	97.3 %	45 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	1 kW	96.2 A	Active Low Enable	56 V	CB CSA IEC TUV UL	Adjustable Output Baseplate Remote On/Off
Flex Power Modules BMR4800116/005	Quarter Brick	-40 °C	125 °C	1	Through Hole	12 V	ITE (Commercial)	Quarter Brick	62368-1	97.4 %	45 V	1.45 in	14.5 mm	58.4 mm	36.8 mm	2.3 in	0.57 "	Intermediate Bus Converter Digital	1.5 kV	1.3 kW	108.3 A	Active Low Enable	60 V	CB CSA IEC TUV UL	Adjustable Output Baseplate PMBus™ Remote On/Off
