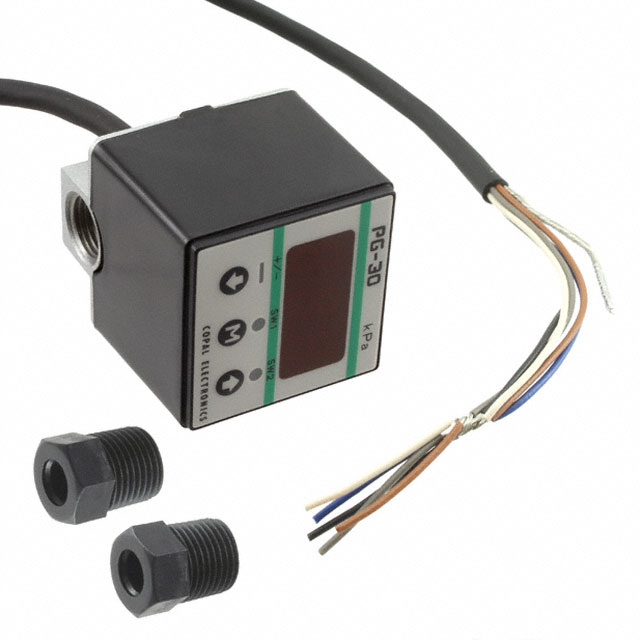

PG-30 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
PRES GAUGE PNP OPEN COLLECTR
| Part | Port Size | Port Size | Port Size | Termination Style | Package / Case | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Pressure Type | Output Type | Supplier Device Package | Applications | Operating Pressure | Operating Pressure | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Maximum Pressure | Maximum Pressure | Output [Min] | Output [Max] | Port Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 3.18 mm | BSPT Female | 0.125 " | Cable | Module Box with Display | -10 °C | 50 °C | Compound | PNP - Open Collector | Module | Industrial Automation | 100 kPa | 14.5 PSI | 30 VDC | 10.8 VDC | Temperature Compensated | 1378.95 kPa | 200 PSI | 1 V | 5 V | Threaded |
Nidec Components Corporation | 3.18 mm | BSPT Female | 0.125 " | Cable | Module Box with Display | -10 °C | 50 °C | Compound | PNP - Open Collector | Module | Industrial Automation | 30 VDC | 10.8 VDC | Temperature Compensated | 10342.14 kPa | 1500 PSI | 1 V | 5 V | Threaded | ||
Nidec Components Corporation | 3.18 mm | BSPT Female | 0.125 " | Cable | Module Box with Display | -10 °C | 50 °C | Compound | NPN - Open Collector | Module | Industrial Automation | 10 kPa | 1.45 PSI | 30 VDC | 10.8 VDC | Temperature Compensated | 1 V | 5 V | Threaded |
