CGS BDS Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

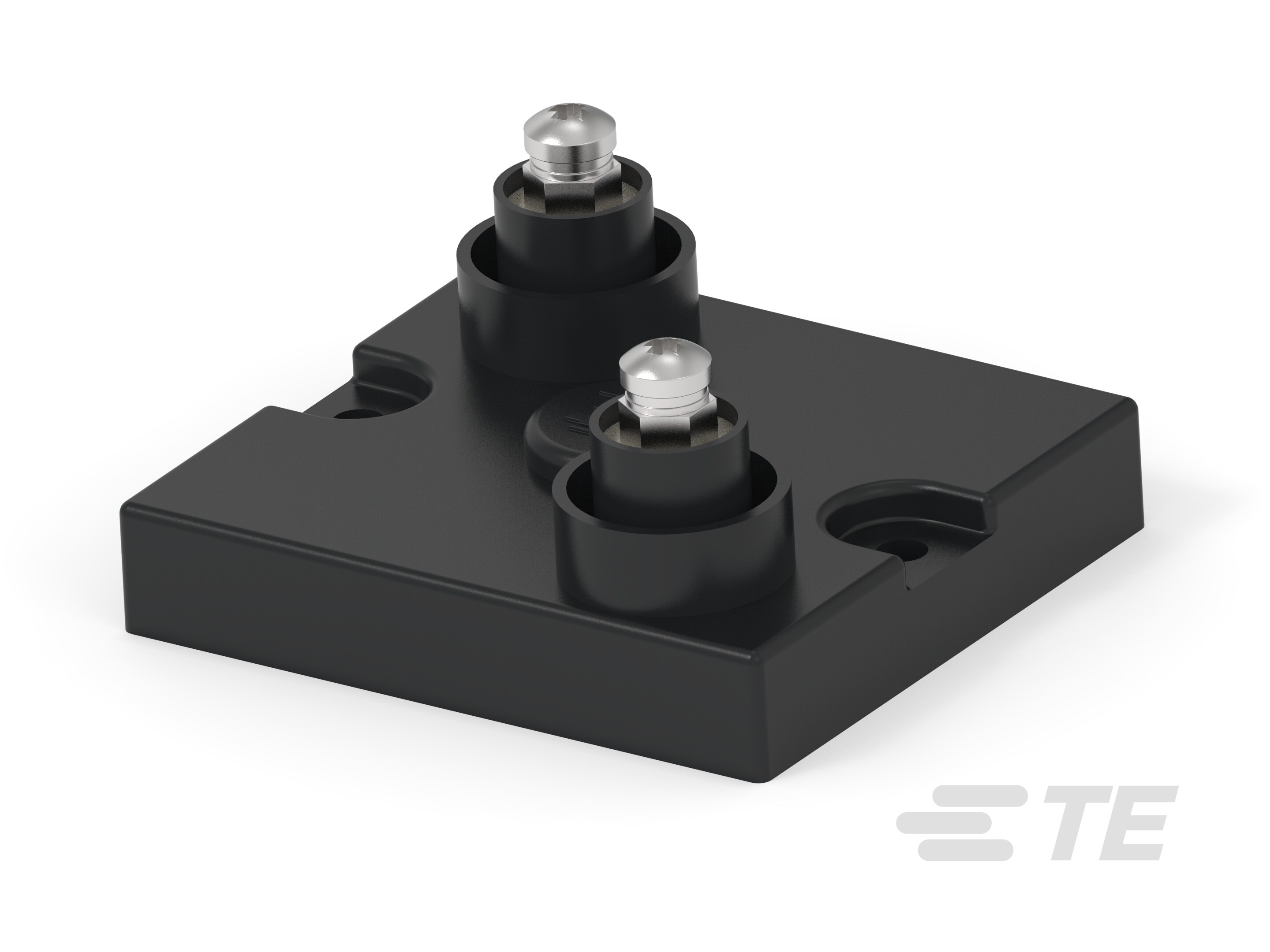

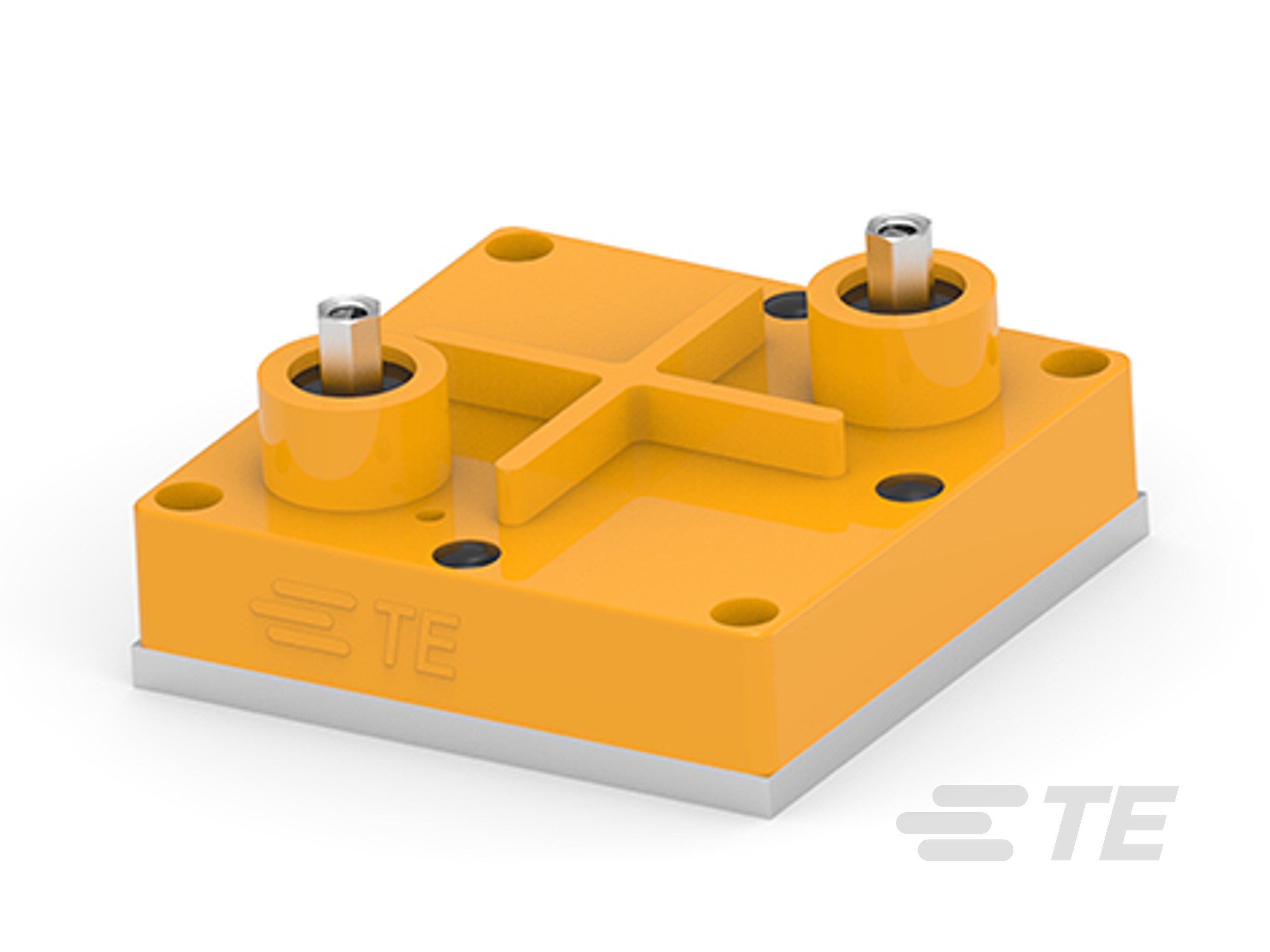

BDS A 1000W 1R8 10%
| Part | Resistance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Tolerance | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Composition | Mounting Feature | Coating, Housing Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Style | Features | Package / Case | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.8 Ohms | 3 " | 3 " | 76.2 mm | 76.2 mm | 200 ppm/°C | 10 % | 1 kW | -55 C | 85 °C | Thick Film | Flanges | Epoxy Coated | 39.31 mm | 1.548 in | #10-32 Threaded | High Frequency RF | ||
 TE Connectivity AMP Connectors | 150 Ohms | 3 " | 3 " | 76.2 mm | 76.2 mm | 200 ppm/°C | 10 % | 1 kW | -55 C | 85 °C | Thick Film | Flanges | Epoxy Coated | 39.31 mm | 1.548 in | #10-32 Threaded | High Frequency RF | ||
 TE Connectivity AMP Connectors | 2.2 Ohms | 1.488 " | 1 " | 37.8 mm | 25.4 mm | 150 ppm/°C | 10 % | 100 W | -55 C | 125 °C | Thick Film | Flanges | Epoxy Coated | 21 mm | M4 Threaded | High Frequency RF | SOT-227-2 | 0.827 " | |
TE Connectivity AMP Connectors | |||||||||||||||||||
TE Connectivity AMP Connectors | 0.068 Ohms | 3 " | 3 " | 76.2 mm | 76.2 mm | 200 ppm/°C | 10 % | 2 kW | -55 C | 85 °C | Thick Film | Flanges | Epoxy Coated | 39.31 mm | 1.548 in | #10-32 Threaded | High Frequency RF | ||
TE Connectivity AMP Connectors | 56 Ohms | 3 " | 3 " | 76.2 mm | 76.2 mm | 200 ppm/°C | 10 % | 2 kW | -55 C | 85 °C | Thick Film | Flanges | Epoxy Coated | 39.31 mm | 1.548 in | #10-32 Threaded | High Frequency RF | ||
 TE Connectivity AMP Connectors | 6.8 Ohms | 2.638 " | 2.372 in | 67 mm | 60.25 mm | 150 ppm/°C | 10 % | 250 W | -55 C | 125 °C | Thick Film | Flanges | Epoxy Coated | 36 mm | M4 Threaded | High Frequency RF | 1.417 " | ||
TE Connectivity AMP Connectors | 8.2 kOhms | 2.638 " | 2.372 in | 67 mm | 60.25 mm | 150 ppm/°C | 10 % | 250 W | -55 C | 125 °C | Thick Film | Flanges | Epoxy Coated | 36 mm | M4 Threaded | High Frequency RF | 1.417 " | ||
TE Connectivity AMP Connectors | 1 Ohms | 1.488 " | 1 " | 37.8 mm | 25.4 mm | 150 ppm/°C | 10 % | 100 W | -55 C | 125 °C | Thick Film | Flanges | Epoxy Coated | 36 mm | M4 Threaded | High Frequency RF | SOT-227-4 | 1.417 " | |
TE Connectivity AMP Connectors | 16 Ohms | 2.638 " | 2.362 in | 67 mm | 60 mm | 150 ppm/°C | 5 % | 400 W | -55 C | 125 °C | Thick Film | Flanges | Epoxy Coated | 36 mm | M4 Threaded | High Frequency RF | 1.417 " |
