Han-Yellock Series
Manufacturer: HARTING
Beta
⌘K

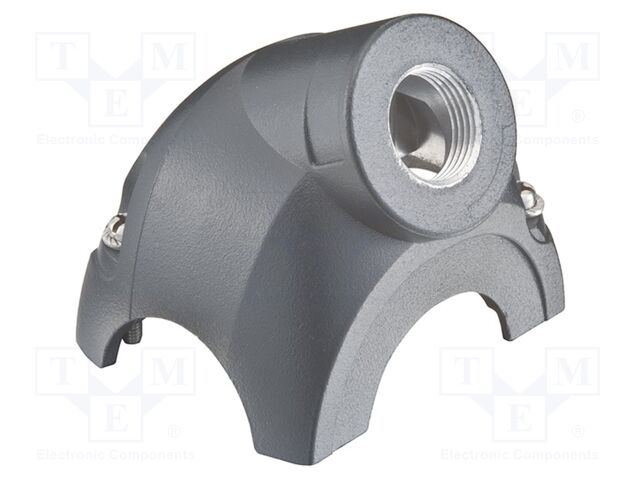

HEAVY DUTY POWER CONNECTORS HAN-YELLOCK 30 ANGLE ENTRY HOOD M20
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lock Location | Ingress Protection | Housing Finish | Style | Thread Size | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Housing Material | Accessory Type | For Use With/Related Products | Color | Number of Positions | Gender | Ratings | Features | Material Flammability Rating | Contact Finish | Contact Material | Current Rating (Amps) | Termination Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 2.205 in | 2.657 " | 67.5 mm | 2.862 " | 72.7 mm | 56 mm | Push Button Snap Lock on Hood Carrier | IP65 IP67 | Epoxy Powder Paint | Side Entry | M20 | Black | 125 °C | -40 C | Hood - Shell | Aluminum Die Cast | |||||||||||||

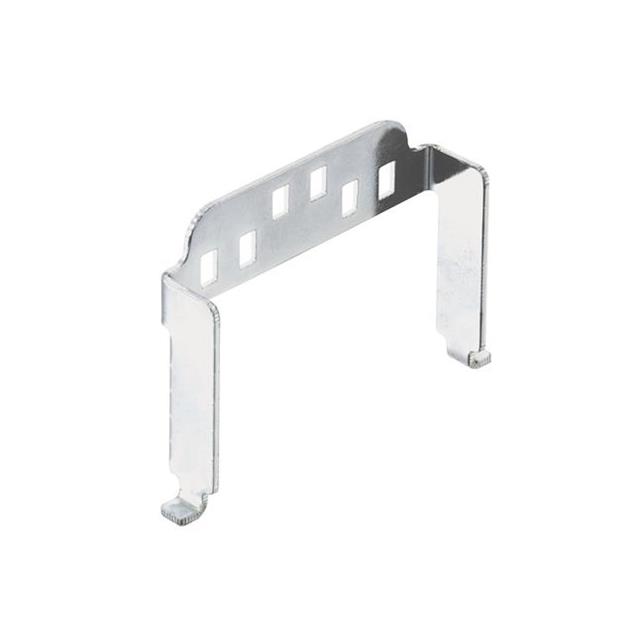

 HARTING | Ground Terminal | Han-Yellock® 30 Housings | |||||||||||||||||||||||||||
 HARTING | 125 °C | -40 C | Insert Multiplier | Polycarbonate (PC) | Red | 5 | Female | ||||||||||||||||||||||

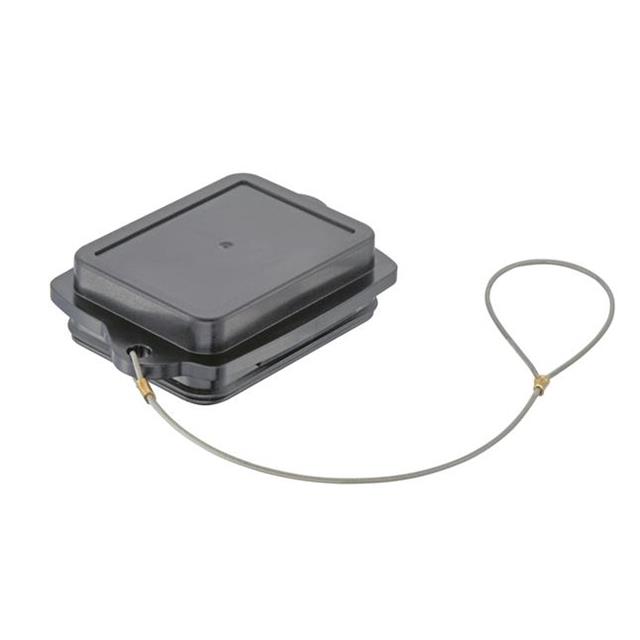

 HARTING | Cover with Retaining Cord | Han-Yellock® 60 Carrier Hoods | IP65 - Dust Tight Water Resistant | ||||||||||||||||||||||||||
 HARTING | Adapter Plate | Han-Yellock® 60 Housings | |||||||||||||||||||||||||||
 HARTING | Cover | Han-Yellock® 30 Housings | IP65 - Dust Tight Water Resistant | ||||||||||||||||||||||||||
 HARTING | Cover | Han-Yellock® 10 Housings | |||||||||||||||||||||||||||

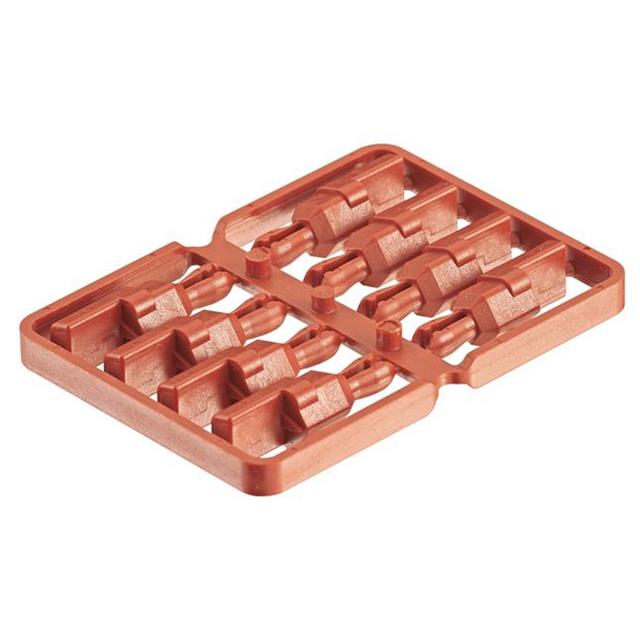

 HARTING | Coding Pin | Han-Yellock® Inserts | |||||||||||||||||||||||||||
 HARTING | 3.228 in | 2.362 in | 60 mm | 4.528 in | 115 mm | 82 mm | Push Button Snap Lock on Hood Carrier | IP65 IP67 | Powder Coated | Side Entry | M25 | Black | 125 °C | -40 C | Base - Box Mount | Zinc Die Cast | Feed Through | ||||||||||||
 HARTING | 125 °C | -40 C | Module | Polycarbonate (PC) | Gray | 5 | Male | UL94 V-0 | Silver | Copper Alloy | 20 A | Push In with Lock | 500 V |
