3051 Series

Catalog

HOOK-UP STRND 22AWG RED 100'

Part	Conductor Material	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Material	Features	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
ALPHA WIRE 3051 RD005	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG	30.5 m	100 ft	Red	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG

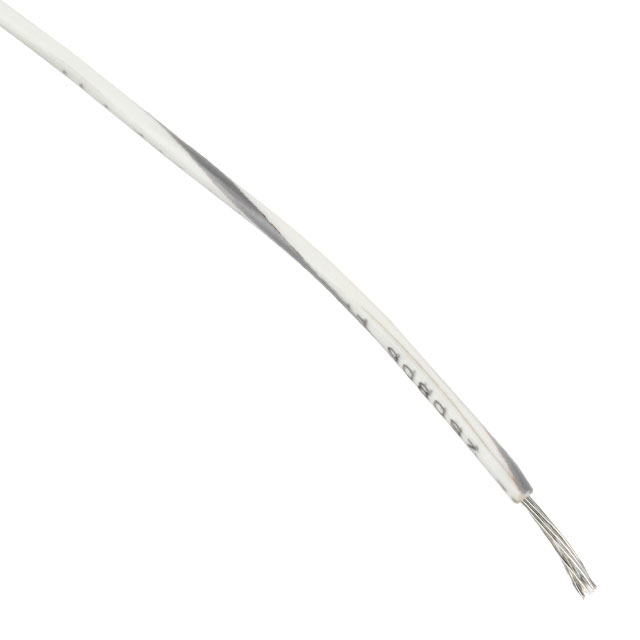

ALPHA WIRE 3051 WS005	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG	30.5 m	100 ft	White Gray Stripe	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG
ALPHA WIRE 3051 PK001	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG			Pink	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG	1000 ft	304.8 m
ALPHA WIRE 3051 WG001	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG				Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG	1000 ft	304.8 m
ALPHA WIRE 3051 BR005	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG	30.5 m	100 ft	Brown	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG
ALPHA WIRE 3051 WG005	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG	30.5 m	100 ft		Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG
ALPHA WIRE 3051 BK013	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG			Black	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG
ALPHA WIRE 3051 WS001	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG			White Gray Stripe	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG	1000 ft	304.8 m
ALPHA WIRE 3051 WU001	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG			White Blue Stripe	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG	1000 ft	304.8 m
ALPHA WIRE 3051 WU005	Copper Tinned	Hook-Up	300 V	0.016 in	0.41 mm	22 AWG	30.5 m	100 ft	White Blue Stripe	Poly-Vinyl Chloride (PVC)	Biological Compatibility	ISO 10993 UL Style 1007/1569	0.062 in	1.57 mm	-40 °C	105 ░C	7	30 AWG
