5220UL Series

Catalog

CABLE 2COND 16AWG WHITE

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Number of Conductors	Length	Length	Wire Gauge	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Features	Usage	Conductor Strand
Belden Inc. 5220UL 009U1000	0.166 in	4.22 mm	300 VDC	2	304.8 m	1000 ft	16 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	White	0.017 "	0.432 mm	Copper Bare	Rip Cord	Alarm Security Sound	Solid
Belden Inc. 5220UL 0101000	0.166 in	4.22 mm	300 VDC	2	304.8 m	1000 ft	16 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	Black	0.017 "	0.432 mm	Copper Bare	Rip Cord	Alarm Security Sound	Solid
Belden Inc. 5220UL 0031000	0.166 in	4.22 mm	300 VDC	2	304.8 m	1000 ft	16 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	Orange	0.017 "	0.432 mm	Copper Bare	Rip Cord	Alarm Security Sound	Solid
Belden Inc. 5220UL 0041000	0.166 in	4.22 mm	300 VDC	2	304.8 m	1000 ft	16 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	Yellow	0.017 "	0.432 mm	Copper Bare	Rip Cord	Alarm Security Sound	Solid

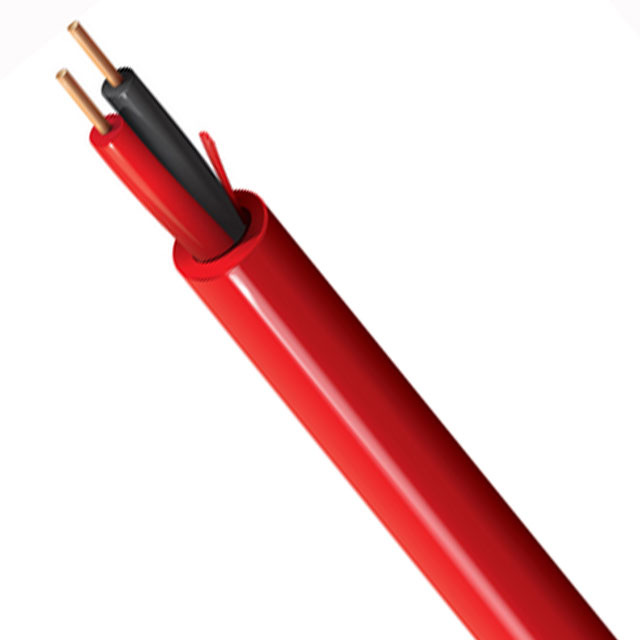

Belden Inc. 5220UL 002A1000	0.166 in	4.22 mm	300 VDC	2	304.8 m	1000 ft	16 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	Red	0.017 "	0.432 mm	Copper Bare	Rip Cord	Alarm Security Sound	Solid
Belden Inc. 5220UL 0021000	0.166 in	4.22 mm	300 VDC	2	304.8 m	1000 ft	16 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC) Riser	Polypropylene (PP)	Red	0.017 "	0.432 mm	Copper Bare	Rip Cord	Alarm Security Sound	Solid
