AST057 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

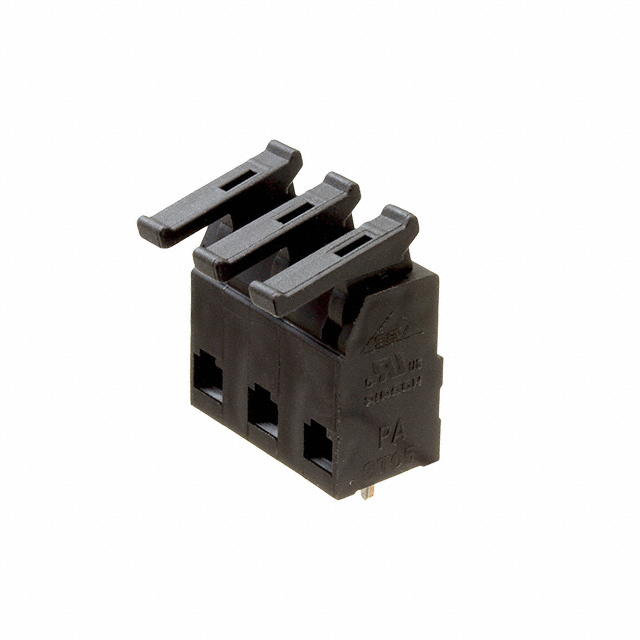

SPRING CLAMP, TERMINAL BLOCK, RI
| Part | Contact Material - Plating | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch | Pitch | Color | Number of Levels | Wire Termination | Voltage | Wire Gauge [Min] | Wire Gauge [Max] | Current | Positions Per Level | Mating Orientation | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Polyamide (PA46) Nylon 4/6 | 0.295 in | 7.5 mm | Black | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC | 12 AWG | 28 AWG | 17 A | 3 | Horizontal with Board | Through Hole | Lever Actuated |
