PNL-500 Series
Manufacturer: Panduit Corp
Beta
⌘K

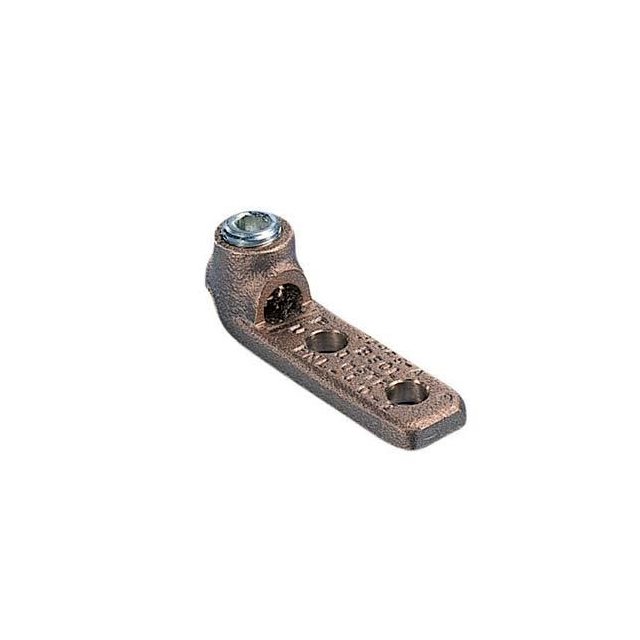

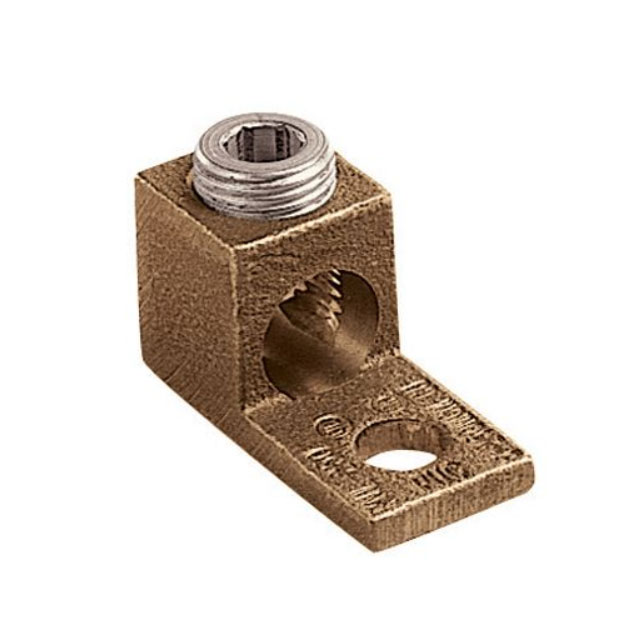

LUG TERMINAL, PAN-LUG SERIES, SCREW, MECHANICAL LUG
| Part | Diameter - Ring ID | Diameter - Ring ID | Contact Material | Features | Tab Thickness [custom] | Tab Thickness [custom] | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Wire Gauge | Wire Gauge | Terminal Style | Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Terminal Type | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Tab Thickness | Tab Thickness | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 13.46 mm | 0.53 in | Copper Alloy | With Screw | 0.25 in | 6.35 mm | 1.38 in | 35.05 mm | Screw | 4 AWG | 500 MCM (kcmil) | Single Stud Hole | Non-Insulated | 3 in | 76.2 mm | Free Hanging (In-Line) | Lug Grounding | ||||||
 Panduit Corp | Copper Alloy | With Screw | 1.38 in | 35.05 mm | Screw | 4 AWG | 500 MCM (kcmil) | Two Stud Holes | Non-Insulated | Free Hanging (In-Line) | Lug Grounding | 0.44 in | 11.18 mm | 7.87 mm | 0.31 " | 3.38 in | 85.85 mm |
