3413.0328 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

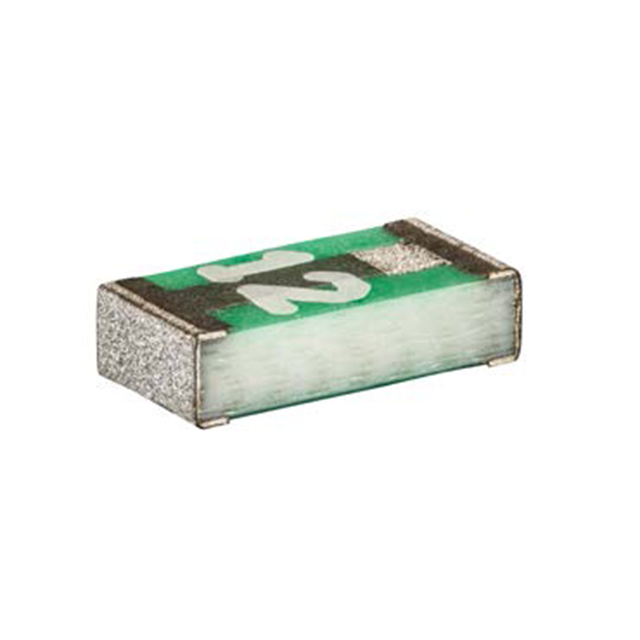

FUSE BOARD MOUNT 10A 32VAC 63VDC
| Part | DC Cold Resistance | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Mounting Type | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Voltage Rating - DC | Melting I²t | Voltage Rating - AC | Fuse Type | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.00545 Ohms | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | Surface Mount | 100 A | 10 A | 63 VDC | 21 | 32 V | Board Mount (Cartridge Style Excluded) | Slow Blow | 90 °C | -55 C | |
 SCHURTER Inc. | 0.00545 Ohms | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | Surface Mount | 100 A | 10 A | 63 VDC | 21 | 32 V | Board Mount (Cartridge Style Excluded) | Slow Blow | 90 °C | -55 C | 21 |
SCHURTER Inc. | 0.00545 Ohms | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | Surface Mount | 100 A | 10 A | 63 VDC | 21 | 32 V | Board Mount (Cartridge Style Excluded) | Slow Blow | 90 °C | -55 C |
