Model 67 Series

Catalog

TRIMMER RESISTORS - THROUGH HOLE 3/8" SQU 10 10%

Part	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistive Material	Termination Style	Temperature Coefficient	Mounting Type	Adjustment Type	Power (Watts)	Power (Watts)	Tolerance	Number of Turns	Size / Dimension [x]	Size / Dimension [y]

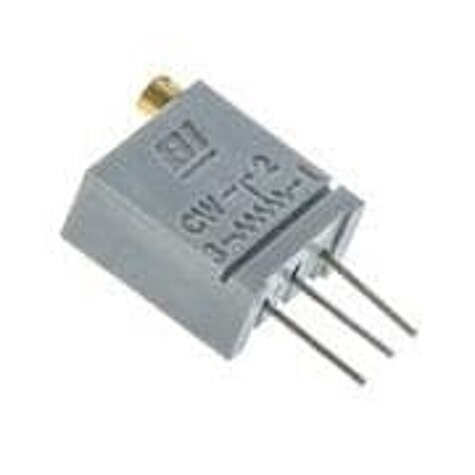

TT Electronics/BI 67WR10LF	10 Ohms	0.375 in	4.95 mm	0.195 in	9.53 mm	Cermet	PC Pins	250 ppm/°C	Through Hole	Top Adjustment	0.5 W	0.5 W	20 %	20
TT Electronics/BI 67ZR1KLF	1000 Ohms	0.437 in	4.95 mm	0.195 in	11.1 mm	Cermet	PC Pins	100 ppm/°C	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	20
TT Electronics/BI 67WR50LFTB	50 Ohms	0.375 in	4.95 mm	0.195 in	9.53 mm	Cermet	PC Pins	250 ppm/°C	Through Hole	Top Adjustment	0.5 W	0.5 W	20 %	20
TT Electronics/BI 67XFR10KLFTR	10000 Ohms	0.437 in	4.95 mm	0.195 in	11.1 mm	Cermet	PC Pins	100 ppm/°C	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	20
TT Electronics/BI 67ZR50LF	50 Ohms	0.437 in	4.95 mm	0.195 in	11.1 mm	Cermet	PC Pins	250 ppm/°C	Through Hole	Side Adjustment	0.5 W	0.5 W	20 %	20
TT Electronics/BI 67ZR200LF	200 Ohms	0.437 in	4.95 mm	0.195 in	11.1 mm	Cermet	PC Pins	100 ppm/°C	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	20
TT Electronics/BI 67PR50LF	50 Ohms		0.375 in		0.437 in	Cermet	PC Pins	250 ppm/°C	Through Hole	Top Adjustment	0.5 W	0.5 W	20 %	20	11.1 mm	9.53 mm
TT Electronics/BI 67XR250KLFTB	250000 Ohms	0.437 in	4.95 mm	0.195 in	11.1 mm	Cermet	PC Pins	100 ppm/°C	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	20
TT Electronics/BI 67WFR50KLFTR	50000 Ohms	0.375 in	4.95 mm	0.195 in	9.53 mm	Cermet	PC Pins	100 ppm/°C	Through Hole	Top Adjustment	0.5 W	0.5 W	10 %	20
TT Electronics/BI 67XR2MEGLFTB	2 MOhms	0.437 in	4.95 mm	0.195 in	11.1 mm	Cermet	PC Pins	100 ppm/°C	Through Hole	Side Adjustment	0.5 W	0.5 W	10 %	20
