LB15CKW Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Voltage Rating - DC	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Marking	Switch Function	Type	Termination Style	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB15CKW01-C	100000 Cycles	1000000 Cycles	Button Round	-25 °C	70 °C	125 V	30 V	Red	SPDT	22 mm	3 A	No Marking	On-Mom	Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In
NKK Switches LB15CKW01/UC-A	100000 Cycles	1000000 Cycles	Button Round	-25 °C	70 °C	125 V	30 V	Black	SPDT	22 mm	3 A	No Marking	On-Mom	Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In
NKK Switches LB15CKW01/C-01-JC	100000 Cycles	1000000 Cycles	Button Round	-25 °C	50 °C	125 V	30 V	Clear	SPDT	22 mm	3 A	No Marking	On-Mom	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	110 VAC	Neon Red
NKK Switches LB15CKW01-5D12-JB	100000 Cycles	1000000 Cycles	Button Round	-25 °C	50 °C	125 V	30 V	Clear	SPDT	22 mm	3 A	No Marking	On-Mom	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	12 VDC	Amber LED
NKK Switches LB15CKW01-5C12-JB	100000 Cycles	1000000 Cycles	Button Round	-25 °C	50 °C	125 V	30 V	Clear	SPDT	22 mm	3 A	No Marking	On-Mom	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	12 VDC	LED Red

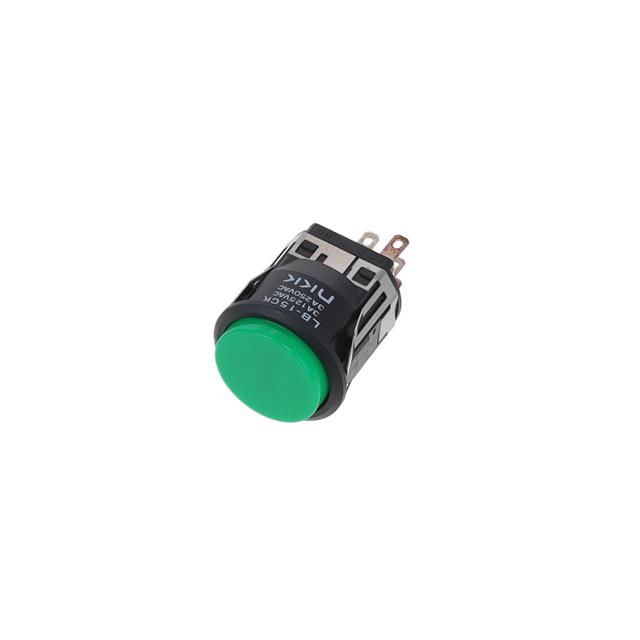

NKK Switches LB15CKW01-F	100000 Cycles	1000000 Cycles	Button Round	-25 °C	70 °C	125 V	30 V	Green	SPDT	22 mm	3 A	No Marking	On-Mom	Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In
NKK Switches LB15CKW01-5C24-JC	100000 Cycles	1000000 Cycles	Button Round	-25 °C	50 °C	125 V	30 V	Clear	SPDT	22 mm	3 A	No Marking	On-Mom	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	24 V	LED Red
NKK Switches LB15CKW01-1CB	100000 Cycles	1000000 Cycles	Button Round	-25 °C	50 °C	125 V	30 V	White	SPDT	22 mm	3 A	No Marking	On-Mom	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	1.9 VDC	LED Red
NKK Switches LB15CKW01-01-JB	100000 Cycles	1000000 Cycles	Button Round	-25 °C	50 °C	125 V	30 V	Clear	SPDT	22 mm	3 A	No Marking	On-Mom	Illuminated Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In	110 VAC	Neon White
NKK Switches LB15CKW01-B	100000 Cycles	1000000 Cycles	Button Round	-25 °C	70 °C	125 V	30 V	White	SPDT	22 mm	3 A	No Marking	On-Mom	Standard	Solder Quick Connect - 0.110" (2.8mm)	Panel Mount Snap-In
