1318300 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER VERT 10POS 3.96MM
| Part | Applications | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Shape | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Voltage Rating | Overall Contact Length | Overall Contact Length | Fastening Type | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Style | Insulation Material | Contact Type | Termination | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

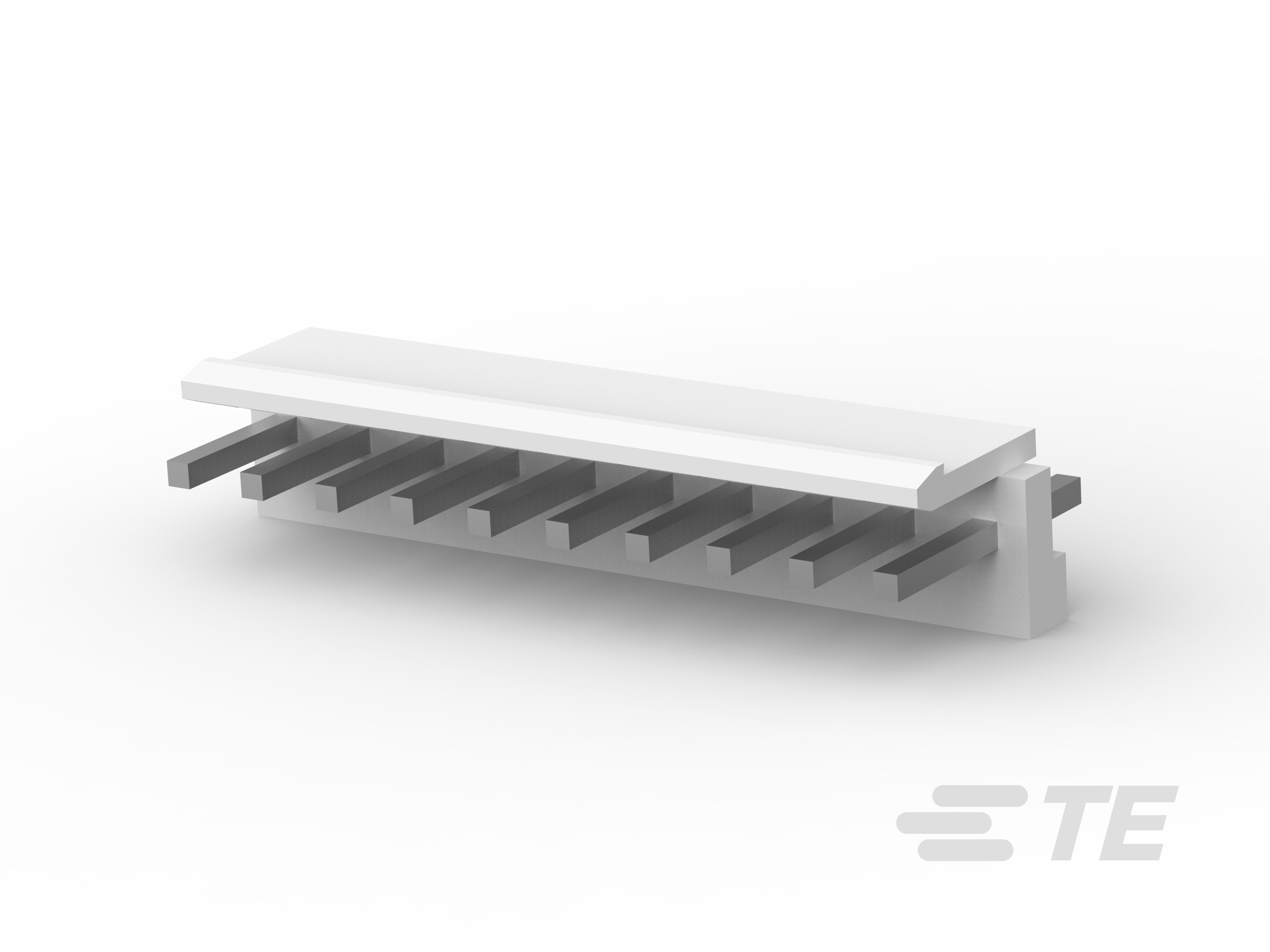

 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | Tin | 0.303 in | 7.7 mm | Natural | Square | Brass | 3.7 mm | 0.146 " | 250 VAC | 14.4 mm | 0.567 in | Locking Ramp | Shrouded - 1 Wall | 3.96 mm | 0.156 in | 3 mm | 0.118 in | Header | All | 105 ░C | -25 °C | 7.5 A | UL94 V-0 | Through Hole | Board to Cable/Wire | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Solder | 10 | 1 |

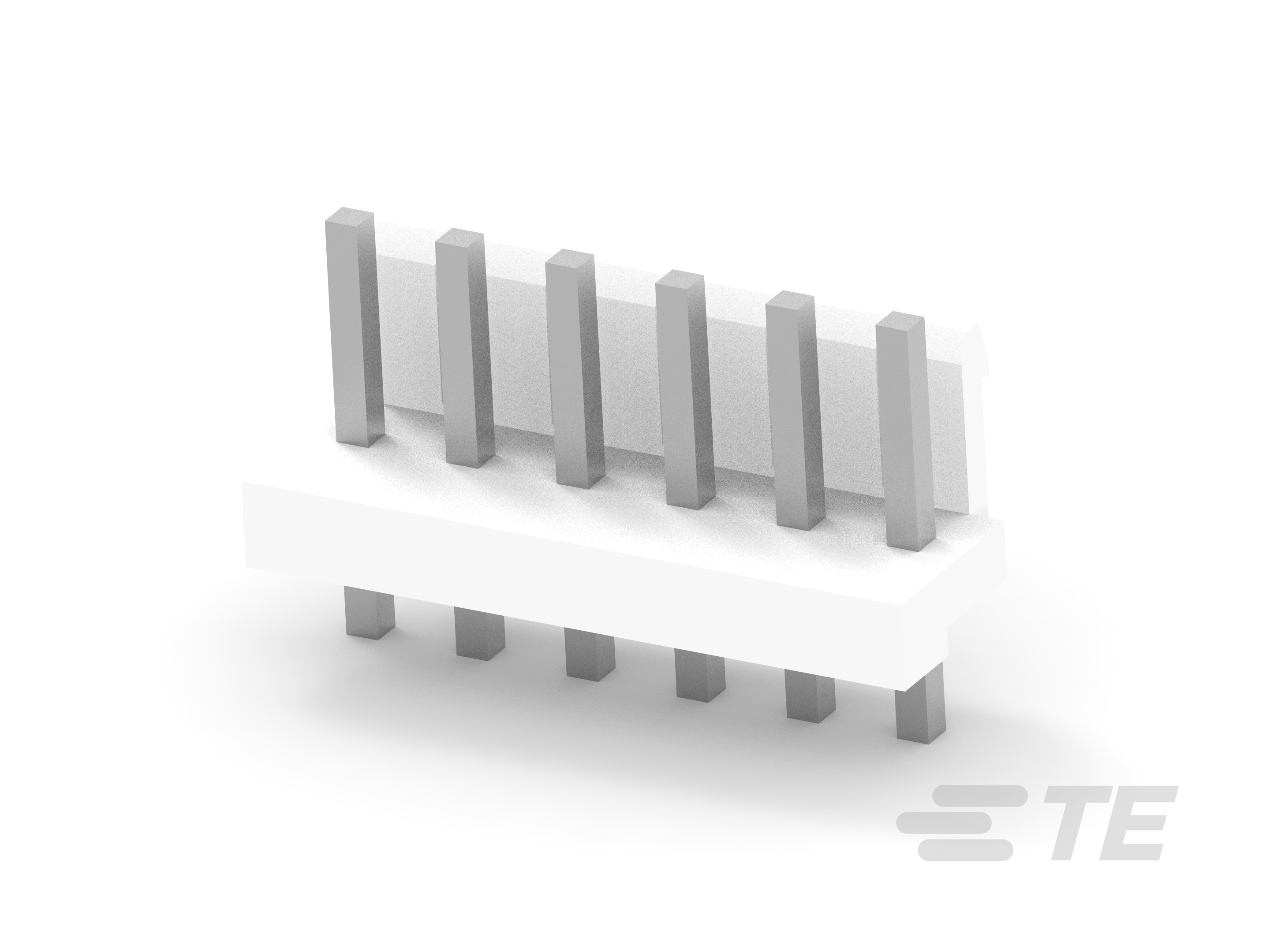

 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | Tin | 0.303 in | 7.7 mm | Natural | Square | Brass | 3.7 mm | 0.146 " | 250 VAC | 14.4 mm | 0.567 in | Locking Ramp | Shrouded - 1 Wall | 3.96 mm | 0.156 in | 3 mm | 0.118 in | Header | All | 105 ░C | -25 °C | 7.5 A | UL94 V-0 | Through Hole | Board to Cable/Wire | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Solder | 6 | 1 |

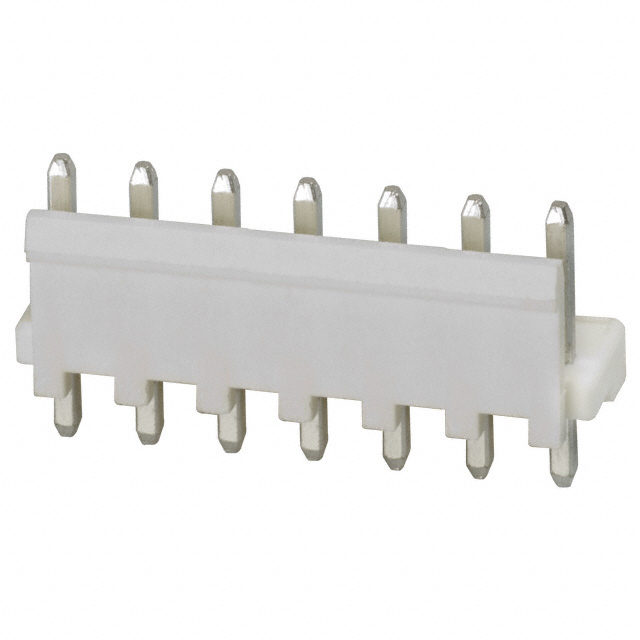

 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | Tin | 0.303 in | 7.7 mm | Natural | Square | Brass | 3.7 mm | 0.146 " | 250 VAC | 14.4 mm | 0.567 in | Locking Ramp | Shrouded - 1 Wall | 3.96 mm | 0.156 in | 3 mm | 0.118 in | Header | All | 105 ░C | -25 °C | 7.5 A | UL94 V-0 | Through Hole | Board to Cable/Wire | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Solder | 7 | 1 |
