6EP13373 Series
Manufacturer: Siemens
Beta
⌘K

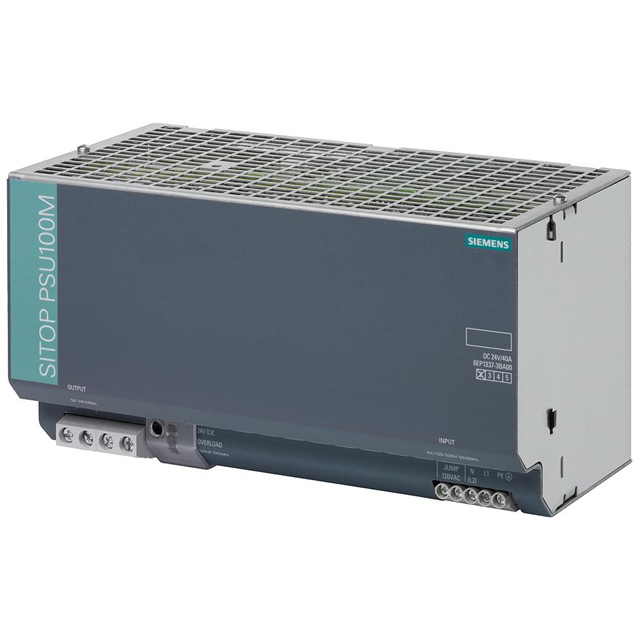

AC/DC DIN RAIL SUPPLY 24V
| Part | Voltage - Output 1 | Applications | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Efficiency | Approval Agency | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Features | Standard Number | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 24 V | Industrial ITE (Commercial) | 132 VAC 264 VAC | 85 VAC 176 VAC | 88 % | CE CSA cULus EAC UL | AC | 70 °C | 0 °C | 1 | 9.45 in | 240 mm | 125 mm | 4.92 in | 4.92 in | 125 mm | Adjustable Output IP20 | 60950-1; UL 508 | 40 A |
