QS3 Series
Manufacturer: PULS, LP
Beta
⌘K

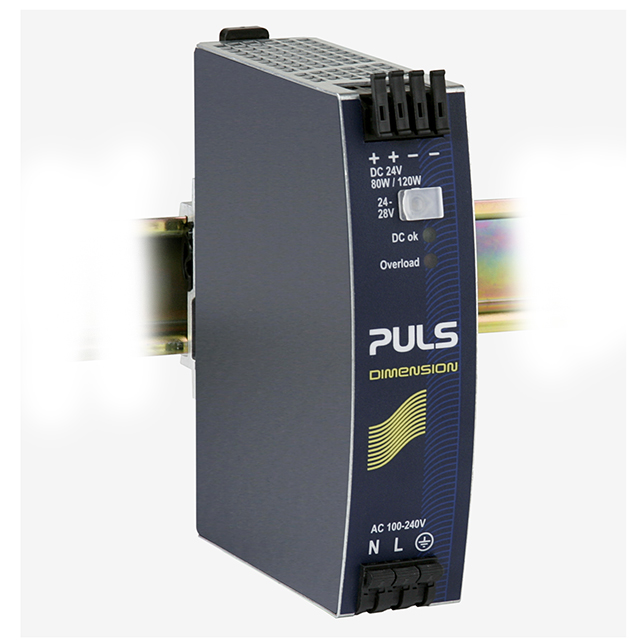

AC/DC DIN RAIL SUPPLY 24V 80W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Approval Agency | Voltage - Isolation | Applications | Features | Voltage - Output 1 | Power (Watts) | Efficiency | Standard Number | Number of Outputs | Input Type | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | 32 mm | 102 mm | 4.02 in | 1.26 in | 4.88 in | 124 mm | 70 °C | -10 °C | 276 VAC | 85 VAC | ABS CSA DNV GL EAC IEC SEMI UL | 500 V | ITE (Commercial) | Adjustable Output Load Sharing | 24 V | 80 W | 90 % | 508 60950-1 61010-2-201 Class I Div 2 F47 | 1 | AC | 3.33 A |
