F2213/4 Series

Catalog

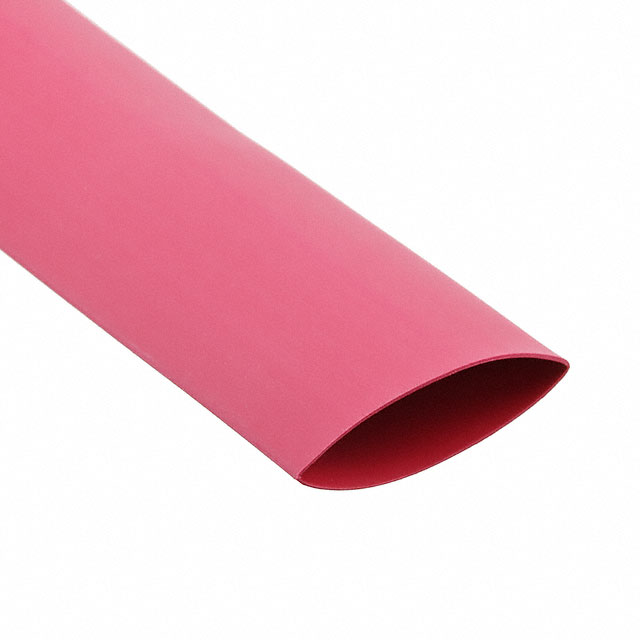

FIT2213/4 RED 12X6 IN ROHS COMPLIANT: YES

Part	Shelf Life Start	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Material	Length	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Length [x]	Length [x]	Length [x]
ALPHA WIRE F2213/4 RD067	Date of Manufacture	Red	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	152.4 mm	0.5 '	6 "	-55 C	135 °C	Flame Resistant Fluid Resistant	9.53 mm	0.375 in	144 Months

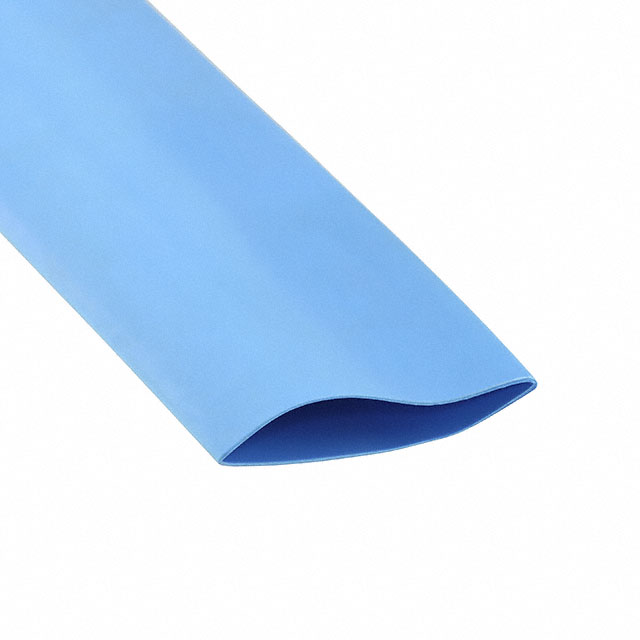

ALPHA WIRE F2213/4 BL026	Date of Manufacture	Blue	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	7.3 m	24 ft		-55 C	135 °C	Flame Resistant Fluid Resistant	9.53 mm	0.375 in	144 Months
ALPHA WIRE F2213/4 BK026	Date of Manufacture	Black	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	7.3 m	24 ft		-55 C	135 °C	Flame Resistant Fluid Resistant UV Resistant	9.53 mm	0.375 in	144 Months
ALPHA WIRE F2213/4 BL105	Date of Manufacture	Blue	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated				-55 C	135 °C	Flame Resistant Fluid Resistant	9.53 mm	0.375 in	144 Months	4 ft	1.22 m

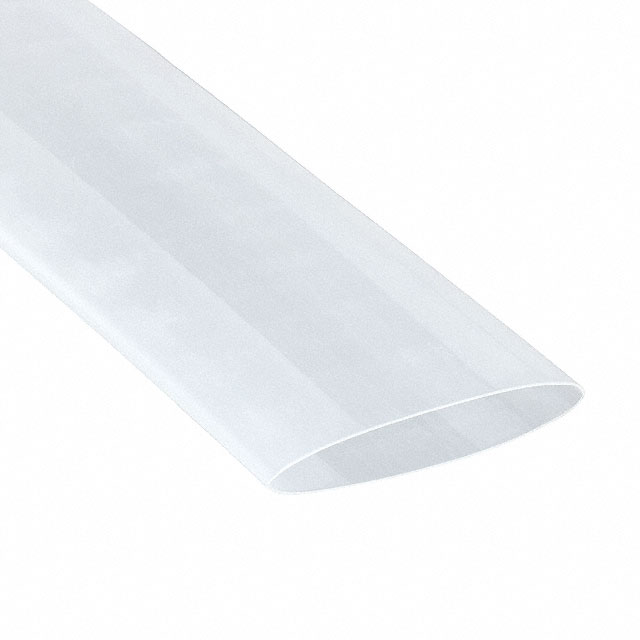

ALPHA WIRE F2213/4 CL003	Date of Manufacture	Clear	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	76.2 m	250 ft		-55 C	135 °C	Fluid Resistant	9.53 mm	0.375 in	144 Months
ALPHA WIRE F2213/4 RD105	Date of Manufacture	Red	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated				-55 C	135 °C	Flame Resistant Fluid Resistant	9.53 mm	0.375 in	144 Months	4 ft	1.22 m

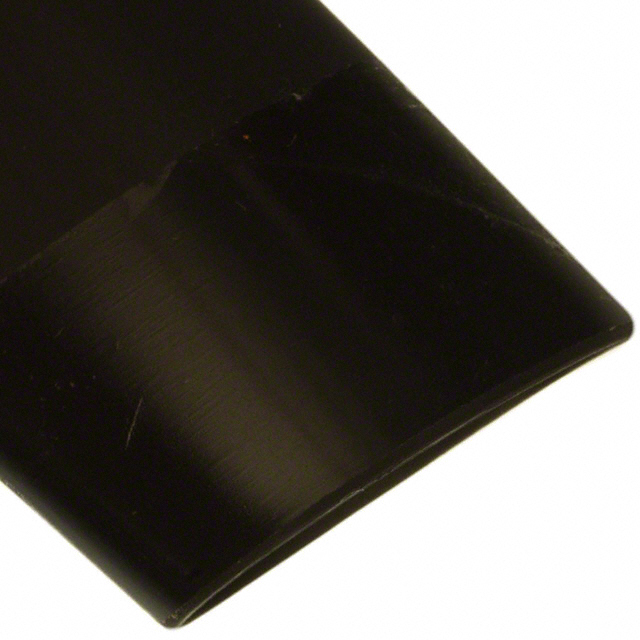

ALPHA WIRE F2213/4 BK003	Date of Manufacture	Black	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	19.05 mm 25.4 mm 38.1 mm 50.8 mm 76.2 m 101.6 mm 152.4 mm	0.062 ft 0.083 ft 0.125 ft 0.167 ft 0.5 ' 250 ft	0.75 " 1 " 1.5 in 2 in 4 in 6 "	-55 C	135 °C	Flame Resistant Fluid Resistant UV Resistant	9.53 mm	0.375 in	144 Months	0.25 ft 0.333 ft	76.2 mm	3 in
ALPHA WIRE F2213/4 BK067	Date of Manufacture	Black	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	152.4 mm	0.5 '	6 "	-55 C	135 °C	Flame Resistant Fluid Resistant UV Resistant	9.53 mm	0.375 in	144 Months

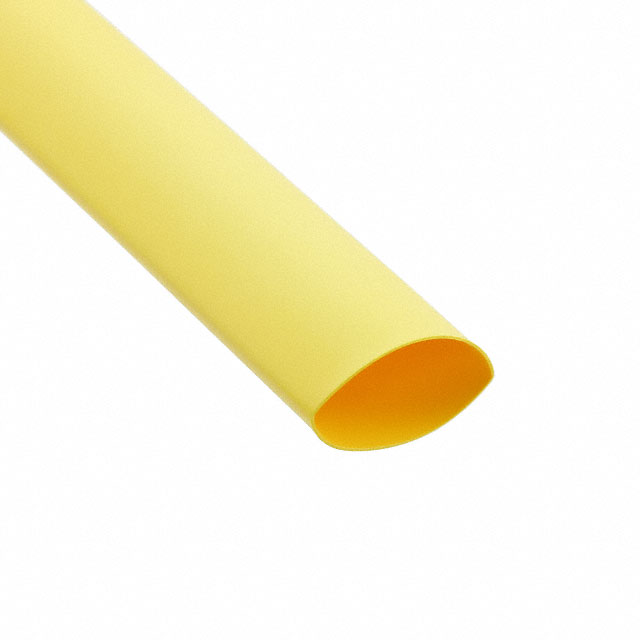

ALPHA WIRE F2213/4 YL105	Date of Manufacture	Yellow	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated				-55 C	135 °C	Flame Resistant Fluid Resistant	9.53 mm	0.375 in	144 Months	4 ft	1.22 m

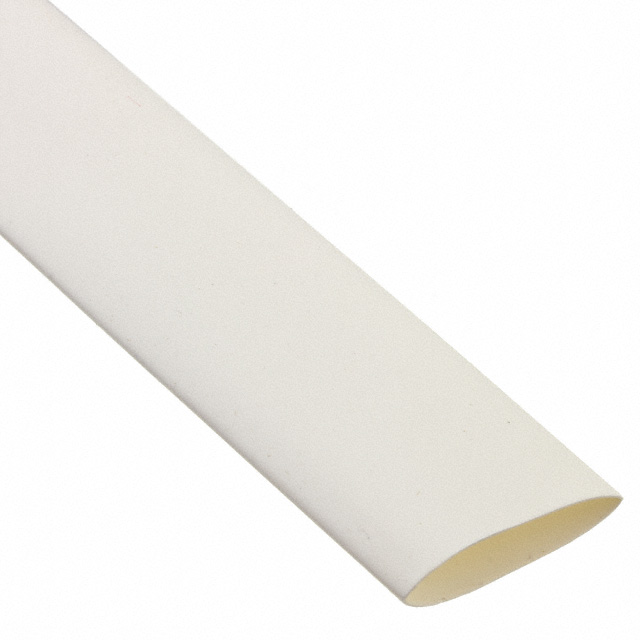

ALPHA WIRE F2213/4 WH003	Date of Manufacture	White	1	2	Tubing Flexible	90 °C	0.76 mm	0.03 in	Polyolefin (PO) Irradiated	7.6 m 15.2 m 76.2 m 152.4 mm	0.5 ' 25 ft 50 ft 250 ft	6 "	-55 C	135 °C	Flame Resistant Fluid Resistant	9.53 mm	0.375 in	144 Months
