HSD-04A Series
Manufacturer: Adam Tech
Beta
⌘K
CONN FAKRA HIGH SPEED DATA 4POS
| Part | Body Material | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Connector Type | Shield Termination | Frequency - Max [Max] | Number of Ports | Impedance | Housing Color | Features | Mounting Type | Contact Termination | Center Contact Material | Fastening Type | Connector Style | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

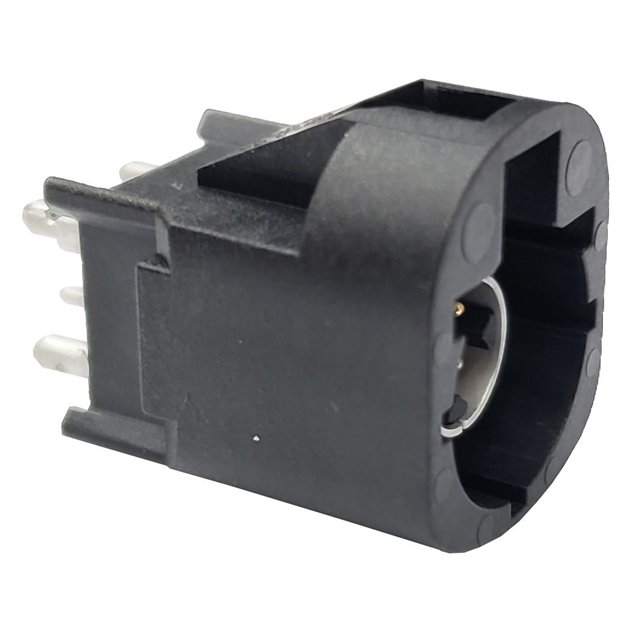

 Adam Tech | Brass | Polyamide (PA) Nylon | Gold | -40 C | 105 ░C | 25 | Plug Male Pin | Solder | 2 GHz | 1 | 100 Ohms | Black | Code A | Through Hole | Solder | Brass | Latch Lock | Fakra HSD® Quadraxial | |

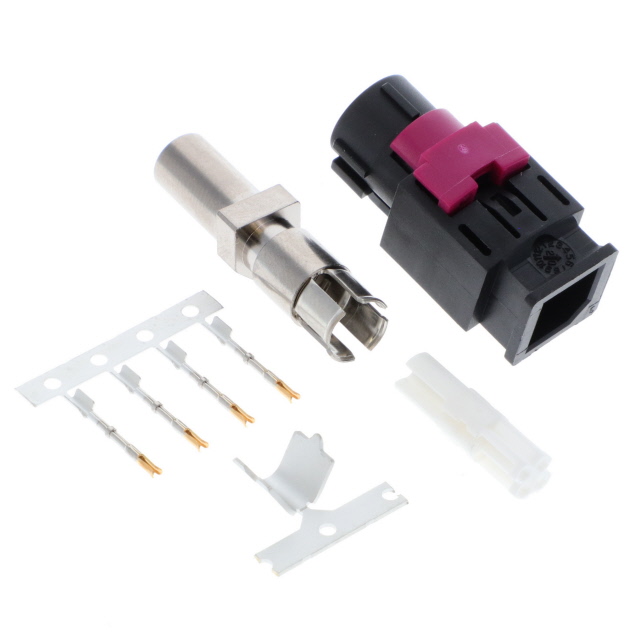

 Adam Tech | Brass | Polybutylene Terephthalate (PBT) | Gold | -40 C | 105 ░C | 25 | Female Socket Jack | Crimp | 2 GHz | 1 | 100 Ohms | Black | Code A | Free Hanging (In-Line) | Solder | Phosphor Bronze | Latch Lock | Fakra HSD® Quadraxial | |
 Adam Tech | Zinc Alloy | Polyamide (PA) Nylon | Gold | -40 C | 105 ░C | 25 | Plug Male Pin | Solder | 2 GHz | 1 | 100 Ohms | Black | Code A | Right Angle Through Hole | Solder | Brass | Latch Lock | Fakra HSD® Quadraxial | Tin |
