78253 Series

Catalog

MAX 253 TX 3.3V INPUT 5V OUT SMD ROHS COMPLIANT: YES

Part	Inductance	For Use With/Related Products	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Weight	Weight	Height - Seated (Max) [Max]	Weight [custom]	Weight [custom]

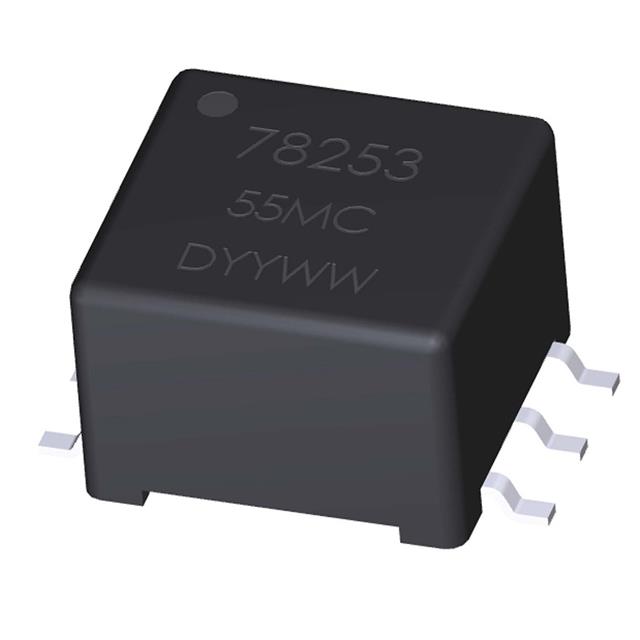

Murata Electronics 78253/35MC-R	380 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.35 mm	0.25 in	Surface Mount
Murata Electronics 78253/55JVC	360 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.6 mm		Surface Mount	0.91 g	0.002 lb	0.26 in
Murata Electronics 78253/35MVC	142 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.6 mm		Surface Mount			0.26 in	0.035 oz	1 g

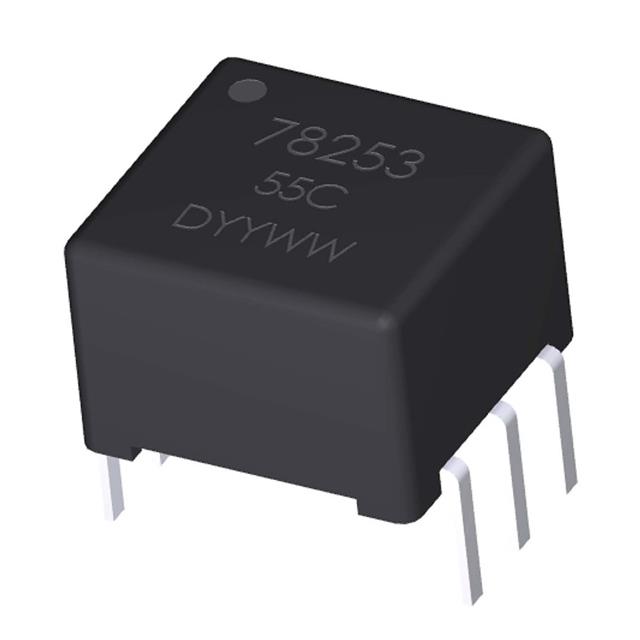

Murata Electronics 78253/35C	380 µH	MAX253	9 mm	9.52 mm	0.375 in	0.354 in	6.35 mm	0.25 in	Through Hole
Murata Electronics 78253/35JVC-R	142 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.35 mm	0.25 in	Surface Mount
Murata Electronics 78253/55C	830 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.6 mm		Through Hole	1.14 g	0.04 oz	0.26 in
Murata Electronics 78253/55MVC	240 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.6 mm		Surface Mount	1.14 g	0.04 oz	0.26 in
Murata Electronics 78253/55JC-R	830 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.35 mm	0.25 in	Surface Mount
Murata Electronics 78253/55JC	360 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.6 mm		Surface Mount	0.91 g	0.002 lb	0.26 in
Murata Electronics 78253/35MC	142 µH	MAX253	9.52 mm	9 mm	0.354 in	0.375 in	6.6 mm		Surface Mount	1.14 g	0.04 oz	0.26 in
