2042-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

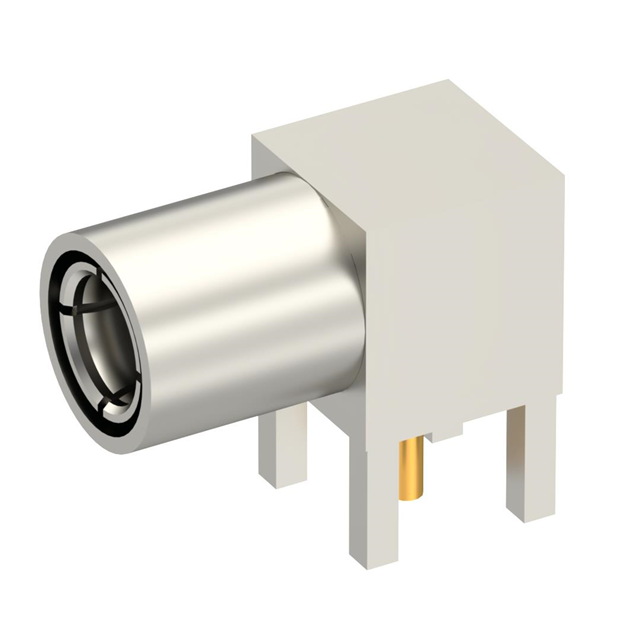

SMB F RA BHD
| Part | Center Contact Plating | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Shield Termination | Frequency - Max [Max] | Connector Type | Contact Termination | Number of Ports | Mounting Type | Center Contact Material | Impedance | Housing Color | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Nickel | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Solder | 4 GHz | Female Socket Plug | Solder | 1 | Right Angle Through Hole | Beryllium Copper | 50 Ohms | Silver | Snap-On | SMB |
