AEE01CC Series

Catalog

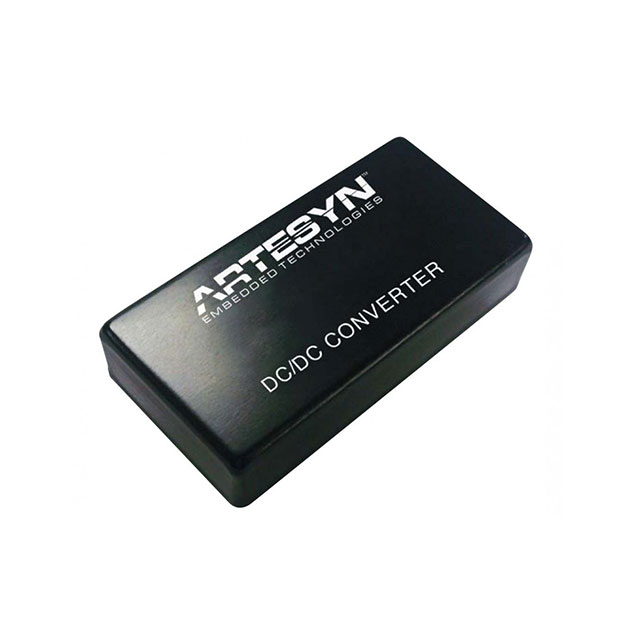

DC DC CONVERTER +/-15V 40W

Part	Voltage - Output 2	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Mounting Type	Applications	Number of Outputs	Power (Watts)	Voltage - Isolation	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
ARTESYN / Advanced Energy AEE01CC18-LHS	-15 V	15 V	2 in	1.22 in	31 mm	0.68 in	17.2 mm	50.8 mm	36 V	Isolated Module	1.33 A	Through Hole	ITE (Commercial)	2	40 W	1.5 kV	6-DIP Module	88 %	9 V
ARTESYN / Advanced Energy AEE01CC18-L	-15 V	15 V							36 V	Isolated Module	1.33 A	Through Hole	ITE (Commercial)	2	40 W	1.5 kV	6-DIP Module	92 %	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OTP OVP Remote On/Off	85 °C	-40 C
ARTESYN / Advanced Energy AEE01CC12-M	-15 V	15 V	2 in	1 "	25.4 mm	0.47 "	12 mm	50.8 mm	18 V	Isolated Module		Through Hole	ITE (Commercial) Medical	2	15 W	4.2 kV	5-DIP Module	89 %	9 V		OCP OVP SCP	80 ¯C	-40 °C	500 mA
