XV476M Series
Manufacturer: KEMET
Beta
⌘K

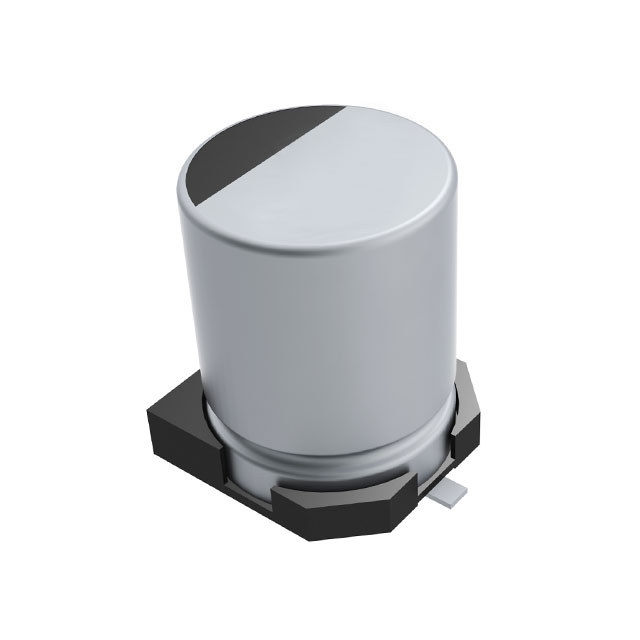

CAP ALUMINUM LYTIC 47UF 50V 20% (10 X 10.2MM) SMD 0.67A 5000H 105°C T/R
| Part | Impedance | Polarization | ESR (Equivalent Series Resistance) | Package / Case | Tolerance | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Applications | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ripple Current @ Low Frequency | Voltage - Rated | Lifetime @ Temp. | Mounting Type | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.34 Ohms | Polar | 340 mOhm | Radial Can - SMD | 20 % | 0.394 in | 10 mm | -55 C | 105 ░C | 47 µF | General Purpose | 0.413 " | 10.5 mm | 469 mA | 50 VDC | 5000 Hrs | Surface Mount | 0.406 " | 0.406 in | 10.3 mm | 10.3 mm |
