LTILA61 Series
Manufacturer: Carling Technologies
Beta
⌘K

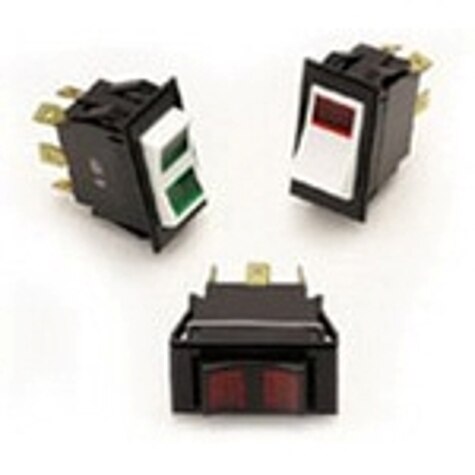

SWITCH ROCKER SPST 6A 125V
| Part | Electrical Life | Mechanical Life | Illumination Voltage (Nominal) | Termination Style | Circuit | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Illumination Type, Color | Voltage Rating - AC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 50000 Cycles | 50000 Cycles | 250 VAC | Quick Connect - 0.250" (6.3mm) | SPST | On-Off | 36.83 mm | 21.08 mm | 6 A | Neon Red | 125 V | Concave (Standard V) - Illuminated | Red | No Marking | CSA UL VDE | Panel Mount Snap-In |
Carling Technologies | 50000 Cycles | 50000 Cycles | 125 VAC | Quick Connect - 0.250" (6.3mm) | SPST | On-Off | 36.83 mm | 21.08 mm | 6 A | Neon Amber | 125 V | Concave (Curved) - Illuminated | White | No Marking | CSA UL VDE | Panel Mount Snap-In |
Carling Technologies | 50000 Cycles | 50000 Cycles | 250 VAC | Quick Connect - 0.250" (6.3mm) | SPST | On-Off | 36.83 mm | 21.08 mm | 6 A | Neon Amber | 125 V | Concave (Curved) - Illuminated | Black | No Marking | CSA UL VDE | Panel Mount Snap-In |
