65803 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

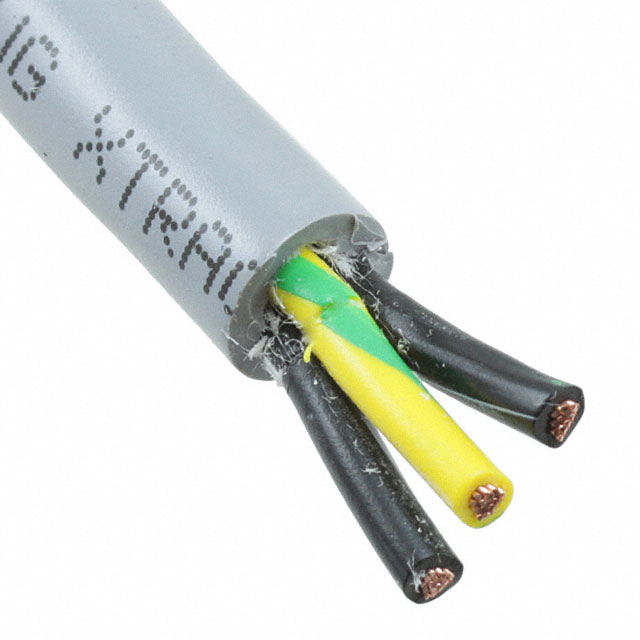

CABLE 3COND 18AWG SLATE
| Part | Jacket Color | Wire Gauge | Features | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Cable Type | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Spool Size [x] | Spool Size [x] | Length | Usage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | 18 AWG | Biological Compatibility | 600 V | Copper Bare | 0.272 in | 6.91 mm | 3 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | ISO 10993 UL Style 2587 | 152.4 m | 500 ft | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | ||||||
ALPHA WIRE | Slate | 18 AWG | Biological Compatibility | 600 V | Copper Bare | 0.272 in | 6.91 mm | 3 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | ISO 10993 UL Style 2587 | 304.8 m | 1000 ft | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | ||||||
ALPHA WIRE | Slate | 18 AWG | Oil Resistant | 600 V | Copper Bare | 0.272 in | 6.91 mm | 3 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | UL Style 2587 | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 609.6 m | 2000 ft | Enter Number of Feet in Order Quantity | Control | ||||
ALPHA WIRE | Slate | 18 AWG | Biological Compatibility | 600 V | Copper Bare | 0.272 in | 6.91 mm | 3 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | ISO 10993 UL Style 2587 | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
