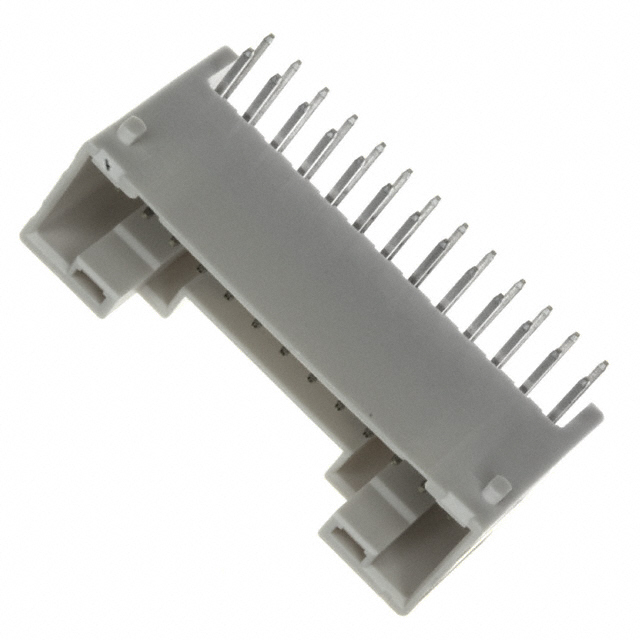

S26B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 26POS 2MM
| Part | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Insulation Material | Connector Type | Contact Material | Number of Rows [custom] | Contact Shape | Contact Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Voltage Rating | Fastening Type | Insulation Color | Style | Shrouding | Insulation Height | Insulation Height | Features | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.118 in | 3 mm | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) | Header | Copper Alloy | 2 | Square | Male Pin | 0.079 " | 2 mm | UL94 V-0 | Solder | 85 °C | -25 °C | Right Angle Through Hole | All | 2 mm | 0.079 in | 26 | 250 V | Latch Holder | Natural | Board to Cable/Wire | Shrouded - 4 Wall | 0.335 " | 8.51 mm | Board Guide | 3 A |
