ILQ620 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

OPTOISO 5.3KV 4CH TRANS 16SMD

Part	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output (Max) [Max]	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]	Number of Channels	Current - DC Forward (If) (Max) [Max]	Mounting Type	Vce Saturation (Max) [Max]	Supplier Device Package	Current Transfer Ratio (Max) [Max]	Output Type	Voltage - Isolation	Package / Case	Package / Case	Package / Case

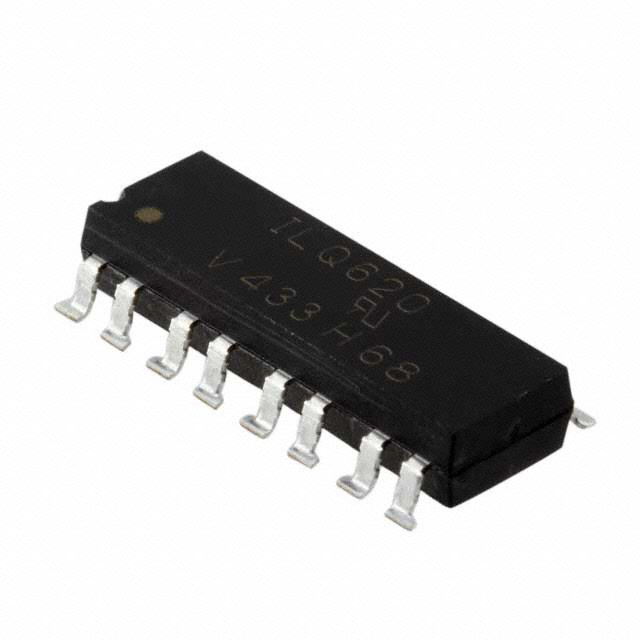

Vishay General Semiconductor - Diodes Division ILQ620-X009	2.3 µs 3 µs	2 µs	20 µs	70 V	50 mA	1.15 V	100 °C	-55 °C	50 %	4	60 mA	Surface Mount	400 mV	16-SMD	600 %	1.81 mOhm	5300 Vrms	16-SMD Gull Wing
Vishay General Semiconductor - Diodes Division ILQ620-X019	2.3 µs 3 µs	2 µs	20 µs	70 V	50 mA	1.15 V	100 °C	-55 °C	50 %	4	60 mA	Surface Mount	400 mV	16-SMD	600 %	1.81 mOhm	5300 Vrms	16-SMD Gull Wing
Vishay General Semiconductor - Diodes Division ILQ620-X019T	2.3 µs 3 µs	2 µs	20 µs	70 V	50 mA	1.15 V	100 °C	-55 °C	50 %	4	60 mA	Surface Mount	400 mV	16-SMD	600 %	1.81 mOhm	5300 Vrms	16-SMD Gull Wing
Vishay General Semiconductor - Diodes Division ILQ620GB-X009T	2.3 µs 3 µs	2 µs	20 µs	70 V	50 mA	1.15 V	100 °C	-55 °C	100 %	4	60 mA	Surface Mount	400 mV	16-SMD	600 %	1.81 mOhm	5300 Vrms	16-SMD Gull Wing
Vishay General Semiconductor - Diodes Division ILQ620	2.3 µs 3 µs	2 µs	20 µs	70 V	50 mA	1.15 V	100 °C	-55 °C	50 %	4	60 mA	Through Hole	400 mV	16-DIP	600 %	1.81 mOhm	5300 Vrms	16-DIP	0.3 in	7.62 mm
Vishay General Semiconductor - Diodes Division ILQ620-X001	2.3 µs 3 µs	2 µs	20 µs	70 V	50 mA	1.15 V	100 °C	-55 °C	50 %	4	60 mA	Through Hole	400 mV	16-DIP	600 %	1.81 mOhm	5300 Vrms	16-DIP	0.3 in	7.62 mm
