2TPF Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

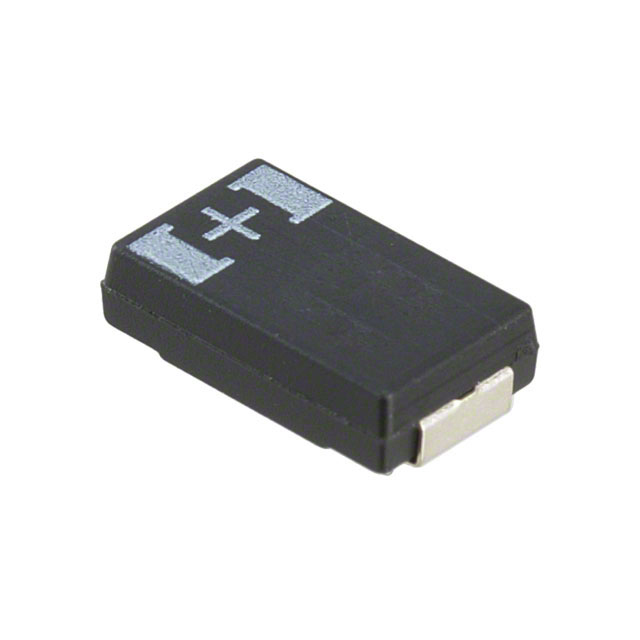

CAP TANT POLYMER 220UF 2VDC D2E CASE 20%( 7.3 X 4.3 X 1.8MM) INWARD L SMD 7343 0.006 OHM 105°C T/R
| Part | Manufacturer Size Code | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Mounting Type | Type | ESR (Equivalent Series Resistance) | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Capacitance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | D2E | -55 C | 105 ░C | 2000 Hrs | Surface Mount | Molded | 6 mOhm | 2 VDC | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 20 % | 0.079 in | 2 mm | 2917 (7343 Metric) | 220 µF | General Purpose |
