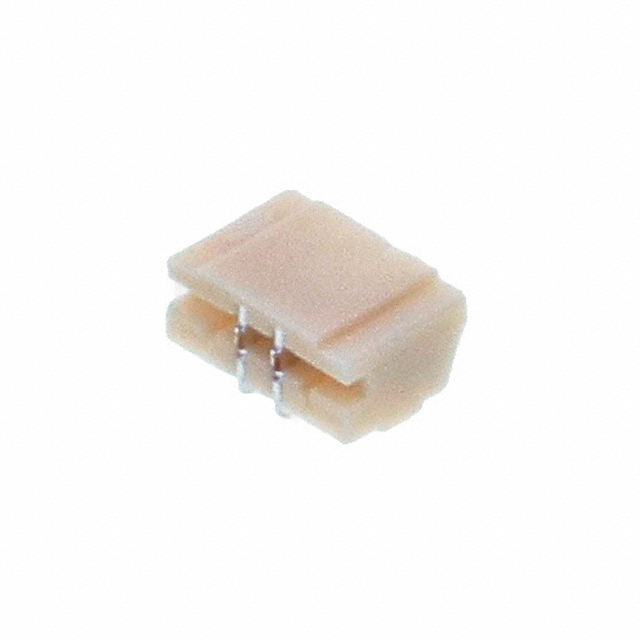

SM02B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 2POS 0.6MM
| Part | Applications | Number of Positions | Insulation Material | Shrouding | Contact Material | Contact Shape | Style | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Voltage Rating | Fastening Type | Insulation Color | Contact Finish - Post | Mounting Type | Connector Type | Number of Positions Loaded | Features | Termination | Material Flammability Rating | Current Rating (Amps) | Insulation Height [custom] | Insulation Height [custom] | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | 2 | Nylon Polyamide (PA) | Shrouded - 4 Wall | Copper Alloy | Rectangular | Board to Cable/Wire | Outer Shroud Contact | 85 °C | -25 °C | 1 | 30 VDC | Friction Lock | Natural | Tin | Right Angle Surface Mount | Header | All | Solder Retention | Solder | UL94 V-0 | 0.2 A | 1.45 mm | 0.057 in | 0.6 mm | 0.024 in |
