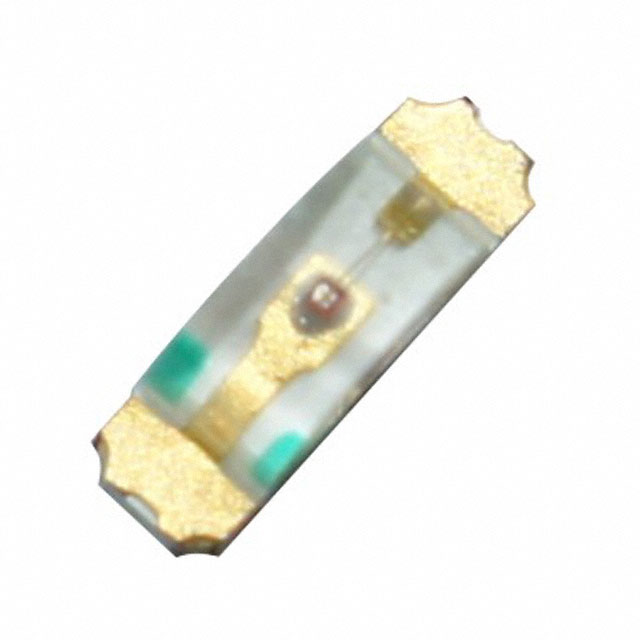

QBLP615 Series

Catalog

LED RGB DIFFUSED 1206 SMD R/A

Part	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Supplier Device Package	Color	Height (Max) [z]	Lens Size [y]	Lens Size [x]	Package / Case	Lens Style	Configuration	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Lens Transparency	Lens Color	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Current - Test	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
QT Brightek (QTB) QBLP615-RGB-2943	620 mcd	110 mcd	190 mcd	1206	Blue Green Red	1.1 mm	1 mm	2 mm	1206 (3216 Metric)	Rectangle with Domed Top	Common Anode	150 °	3.2 mm	1.3 mm	470 nm 525 nm 620 nm	Diffused	Colorless	Right Angle Surface Mount	2 V 3.1 V 3.1 V	20mA Blue 20mA Green 20mA Red
QT Brightek (QTB) QBLP615-AG				1206	Yellow-Green	1 mm	1 mm	2 mm	2-SMD 1206	Rectangle with Domed Top	Standard	150 °	3.2 mm	1.4 mm	570 nm	Clear	Colorless	Right Angle Surface Mount	2.5 V		20 mA	63 mcd

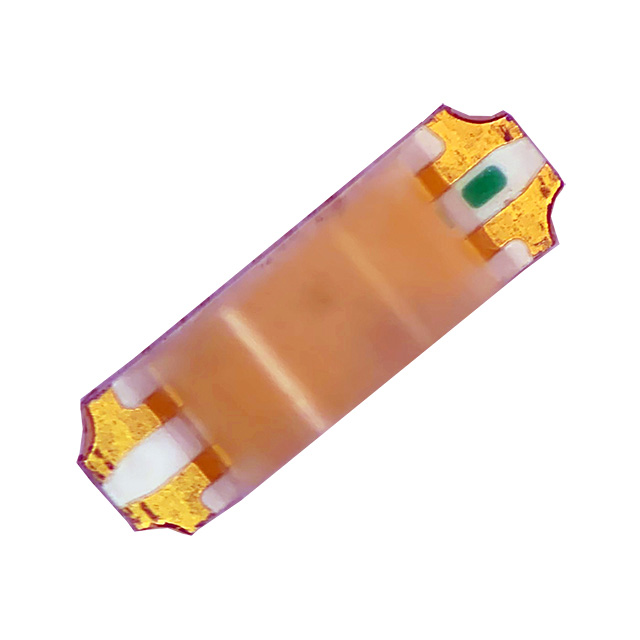

QT Brightek (QTB) QBLP615-RGB-3053				1206	Blue Green Red	1.1 mm	1 mm	2 mm	1206 (3216 Metric)	Rectangle with Domed Top	Common Anode	150 °	3.2 mm	1.3 mm	470 nm 527 nm 620 nm	Diffused	Colorless	Right Angle Surface Mount	2 V 2.7 V 2.8 V			63 mcd 116 mcd 363 mcd	9.8 mA	7 mA	6 mA
