C6050AL Series

Catalog

SWITCH ROCKER DPST 20A 277V

Part	Approval Agency	Current Rating (Amps)	Termination Style	Ingress Protection	Mounting Type	Color - Actuator/Cap	Switch Function	Voltage Rating - AC	Actuator Marking	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Actuator Type

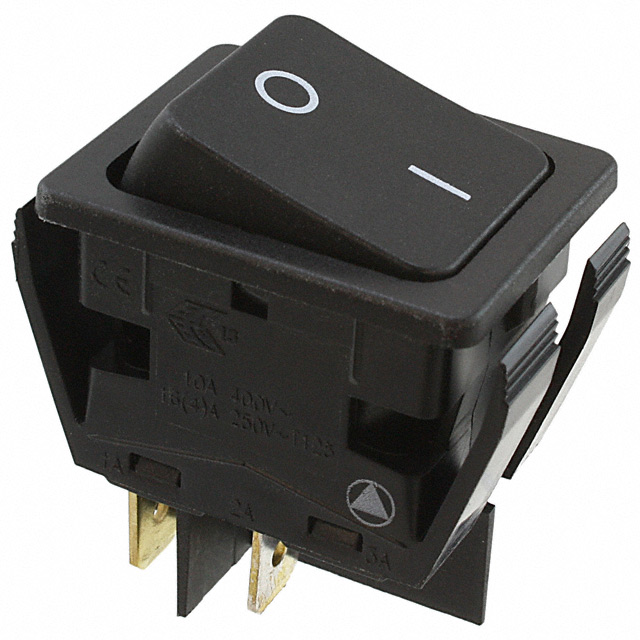

BULGIN LIMITED C6050ALBB-1197W-B	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	Black	On-Off	277 V	O -	Antimicrobial	22.2 mm	30.1 mm	DPST	Flat
BULGIN LIMITED C6050ALAAC
BULGIN LIMITED C6050ALBWXHP1
BULGIN LIMITED C6050ALBG-G72	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	Green	On-Off	277 V	No Marking	Sealing Boot	22.2 mm	30.1 mm	DPST	Flat

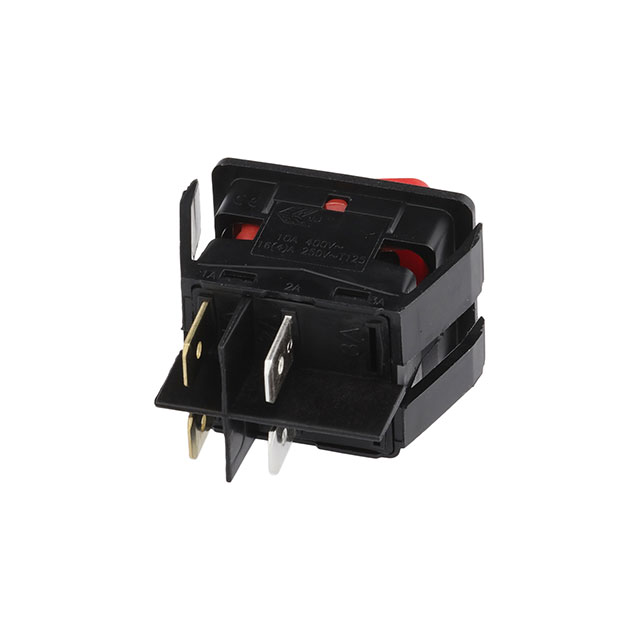

BULGIN LIMITED C6050ALBR-1197W	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	Red	On-Off	277 V	O -		22.2 mm	30.1 mm	DPST	Flat
BULGIN LIMITED C6050ALBB-1229W	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	Black	On-Off	277 V	ON OFF		22.2 mm	30.1 mm	DPST	Flat

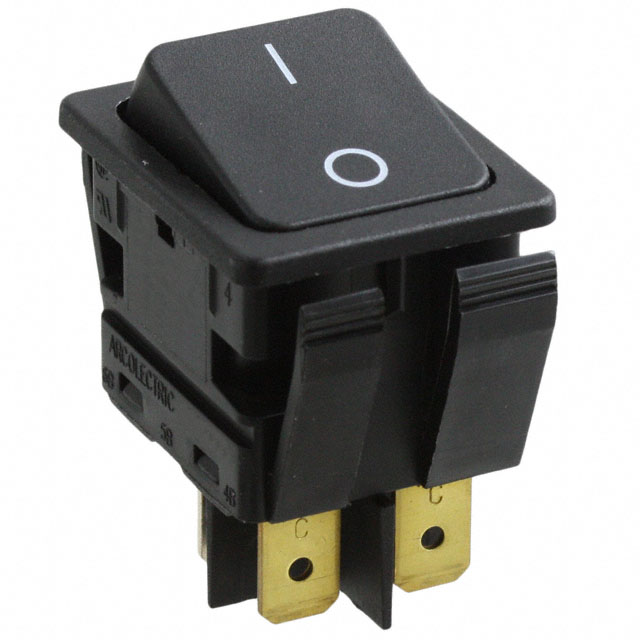

BULGIN LIMITED C6050ALBB-1197W	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	Black	On-Off	277 V	O -		22.2 mm	30.1 mm	DPST	Flat
BULGIN LIMITED C6050ALWW-1197B	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	White	On-Off	277 V	O -		22.2 mm	30.1 mm	DPST	Flat

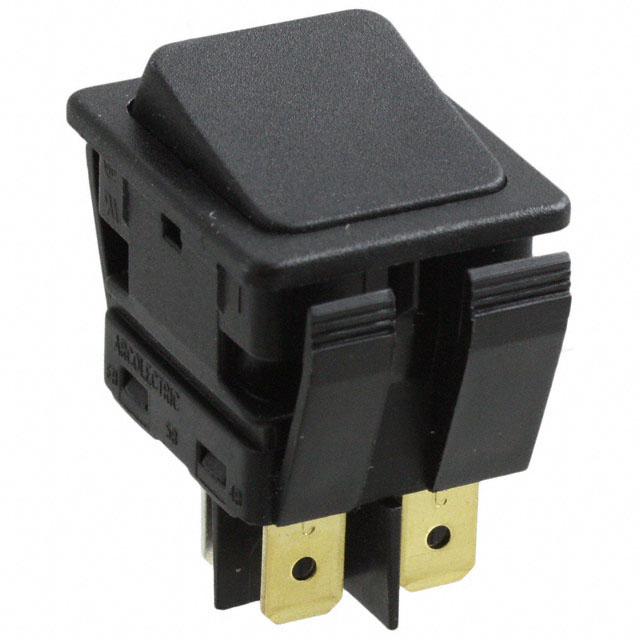

BULGIN LIMITED C6050ALBB	CSA ENEC UL	20 A	Quick Connect - 0.250" (6.3mm)	Splash Proof	Panel Mount Snap-In	Black	On-Off	277 V	No Marking		22.2 mm	30.1 mm	DPST	Flat
