2406869 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

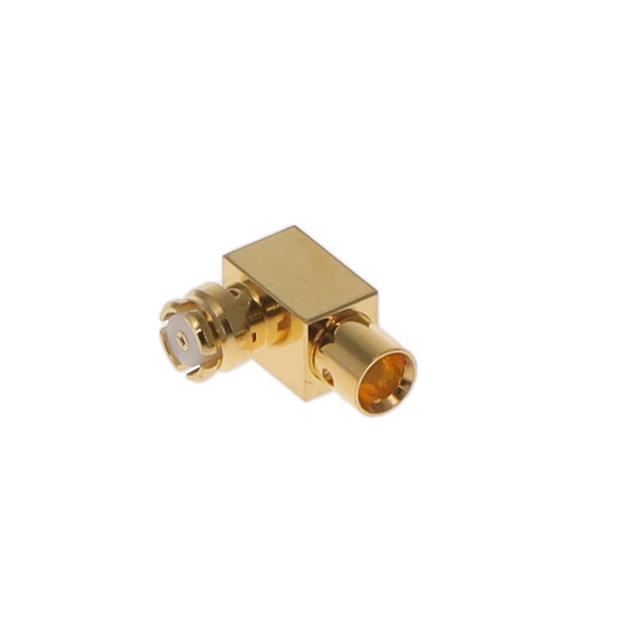

SMP FEMALE R/A FOR TFLEX-405 CAB
| Part | Housing Color | Frequency - Max [Max] | Fastening Type | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Connector Type | Number of Ports | Body Material | Body Finish | Center Contact Material | Voltage Rating | Center Contact Plating | Dielectric Material | Mounting Type | Impedance | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | 15 GHz | Snap-On | Solder | 125 °C | -40 °C | RG-405 | Female Socket Receptacle | 1 | Beryllium Copper | Gold | Beryllium Copper | 175 VDC | Gold | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) Right Angle | 50 Ohms | Solder |
