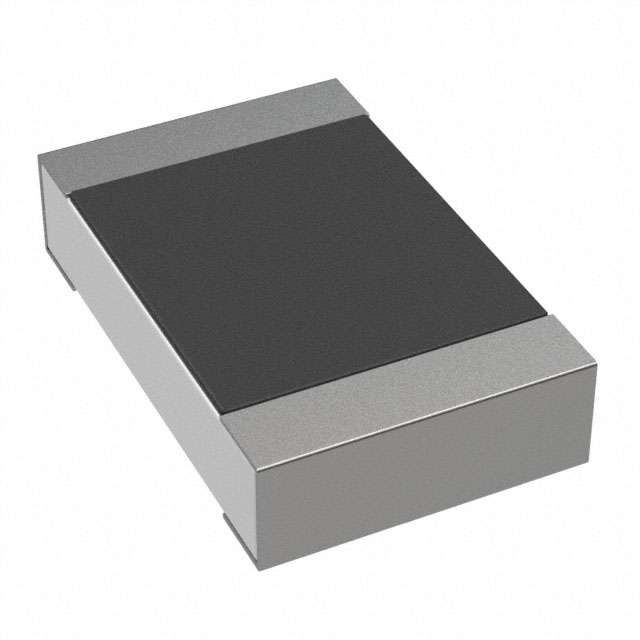

RK73B2A Series
Manufacturer: KOA Speer Electronics, Inc.
Beta
⌘K
RES 22 OHM 5% 1/4W 0805
| Part | Height - Seated (Max) | Temperature Coefficient | Number of Terminations | Resistance | Composition | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Length | Size / Dimension Width | Tolerance | Features | Power (Watts) | Power (Watts) Options | Ratings | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 22 Ohm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 5 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 910 Ohm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 5 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 360 kOhm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 2 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
 KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 16 kOhm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 2 % | Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 330 kOhm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 2 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 2.7 kOhm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 5 % | Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 8.2 kOhm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 5 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 12 Ohm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 5 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 510 kOhm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 2 % | Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
KOA Speer Electronics, Inc. | 0.024 in | 200 ppm/°C | 2 | 270 Ohm | Thick Film | 0805 (2012 Metric) | 155 °C | -55 °C | 0.079 in | 0.049 in | 5 % | Anti-Sulfur Automotive AEC-Q200 | 250 mW | 1/4W | AEC-Q200 | 0805 |
