0041.9151 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSH SPST-NO 200MA 60V
| Part | Electrical Life | Mechanical Life | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Mounting Type | Circuit | Voltage Rating - AC | Ingress Protection | Actuator Marking | Type | Panel Cutout Dimensions [diameter] | Termination Style | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

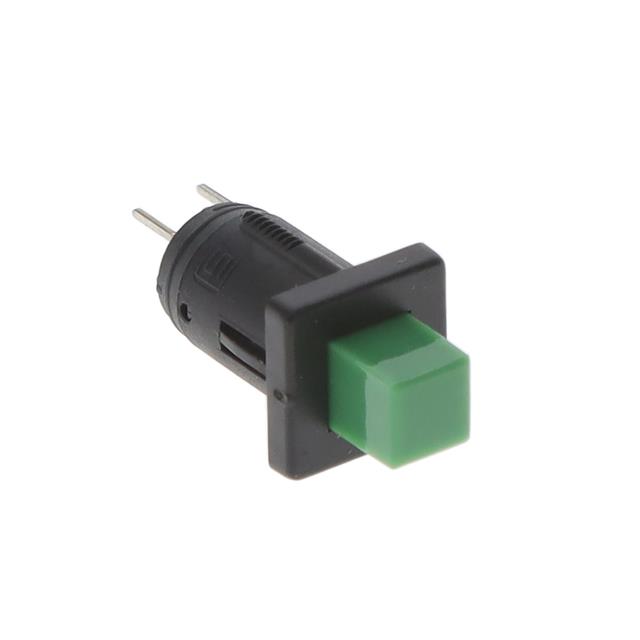

 SCHURTER Inc. | 10000 Cycles | 10000 Steps | Off-On | 200 mA | 50 VDC | Panel Mount Front | SPST-NO | 60 V | IP40 | No Marking | Standard | 8 mm | PC Pin | Button Square | 85 °C | -25 °C | Green |

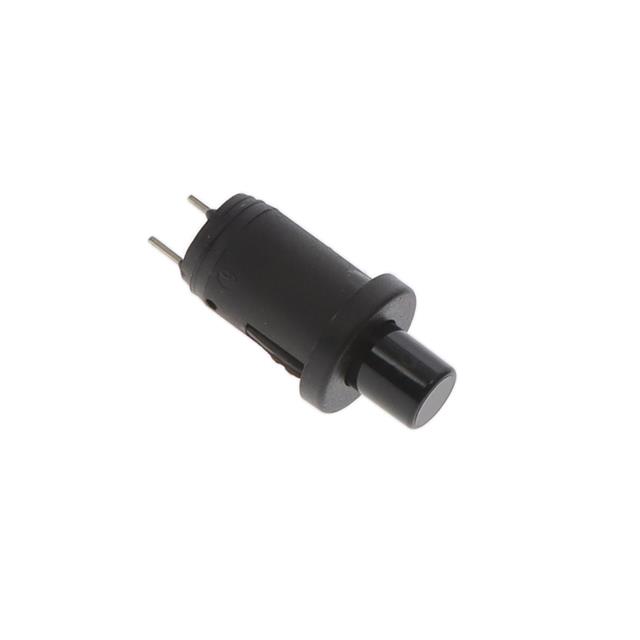

 SCHURTER Inc. | 10000 Cycles | 10000 Steps | Off-On | 200 mA | 50 VDC | Panel Mount Front | SPST-NO | 60 V | IP40 | No Marking | Standard | 8 mm | PC Pin | Button Round | 85 °C | -25 °C | Black |
