9414 Series

Catalog

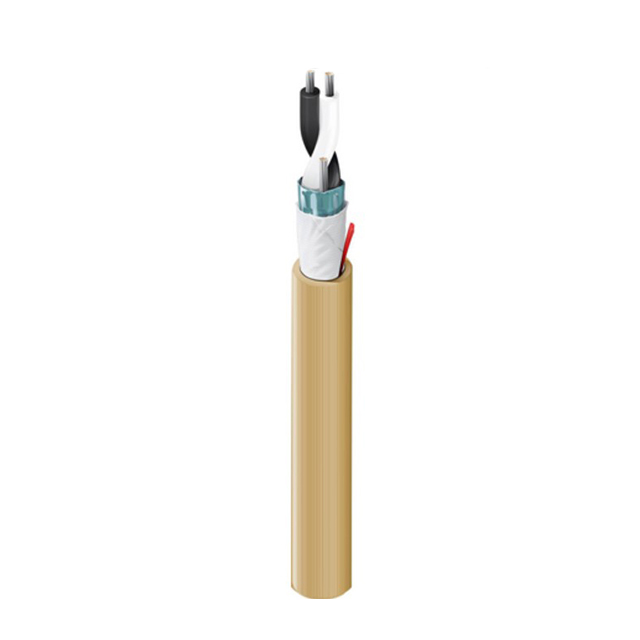

CABLE 2CON 22AWG BEIGE SHLD

Part	Shield Coverage	Shield Material	Conductor Material	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Number of Conductors	Shield Type	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Features	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material
Belden Inc. 9414 T35500	100 %	Aluminum	Copper Tinned	22 AWG	Multi-Conductor	4.57 mm	0.18 in	Poly-Vinyl Chloride (PVC)	2	Foil	152.4 m	500 ft	0.035 in	0.889 mm	Beige	Audio Control Instrumentation	30 AWG	7	Drain Wire	300 VDC	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)
Belden Inc. 9414 T351000	100 %	Aluminum	Copper Tinned	22 AWG	Multi-Conductor	4.57 mm	0.18 in	Poly-Vinyl Chloride (PVC)	2	Foil	304.8 m	1000 ft	0.035 in	0.889 mm	Beige	Audio Control Instrumentation	30 AWG	7	Drain Wire	300 VDC	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)
Belden Inc. 9414 T355000	100 %	Aluminum	Copper Tinned	22 AWG	Multi-Conductor	4.57 mm	0.18 in	Poly-Vinyl Chloride (PVC)	2	Foil			0.035 in	0.889 mm	Beige	Audio Control Instrumentation	30 AWG	7	Drain Wire	300 VDC	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)
