396-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.125

...

Part	Termination Rows [custom]	Material - Insulation	Read Out	Number of Rows [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Type	Termination	Number of Positions	Contact Finish	Card Type	Mounting Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Features
EDAC Inc. 396-068-540-812	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Wire Wrap	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34
EDAC Inc. 396-068-522-202	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Solder	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34
EDAC Inc. 396-068-540-201	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Wire Wrap	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C				Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34

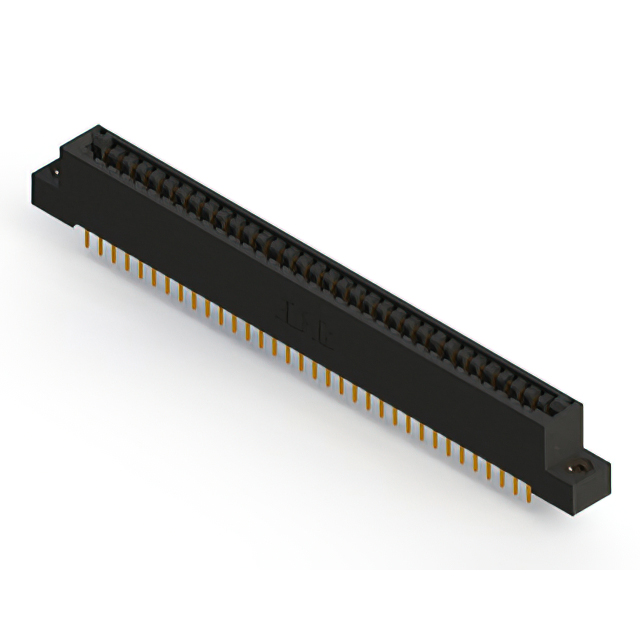

EDAC Inc. 396-068-521-208	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Solder	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34
EDAC Inc. 396-068-540-212	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Wire Wrap	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34
EDAC Inc. 396-068-541-808	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Wire Wrap	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening			Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34

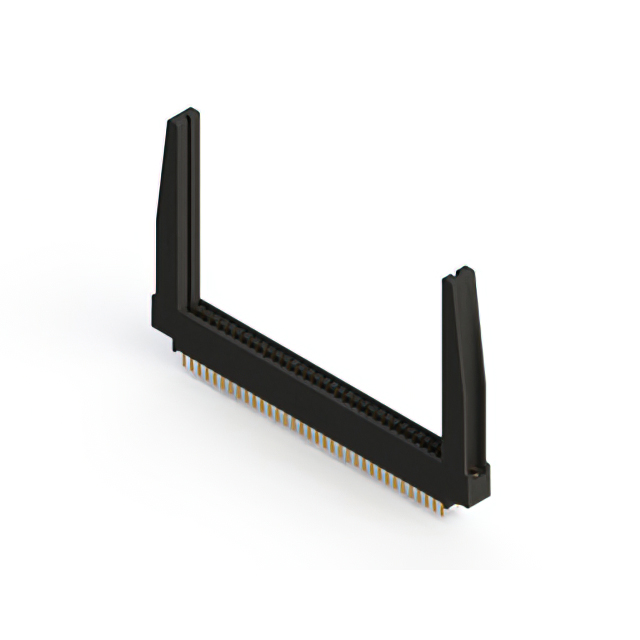

EDAC Inc. 396-068-520-878	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Solder	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	4-40 Threaded Insert Top Mount Opening			Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	Card Guides

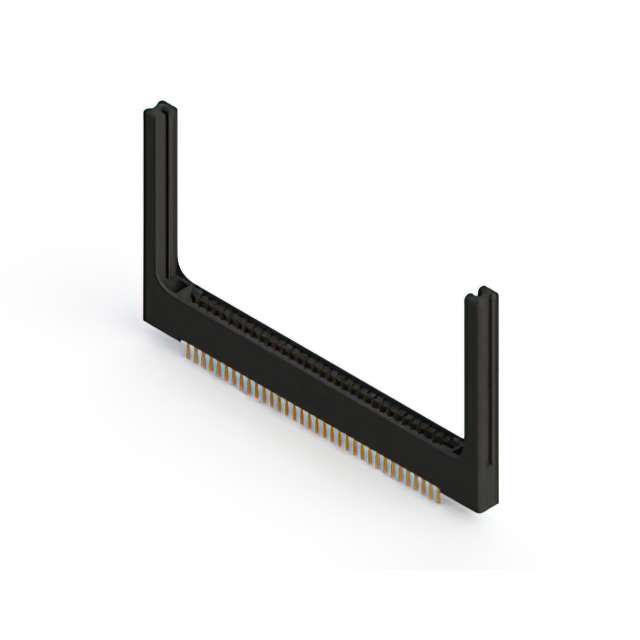

EDAC Inc. 396-068-522-258	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Solder	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	Card Guides

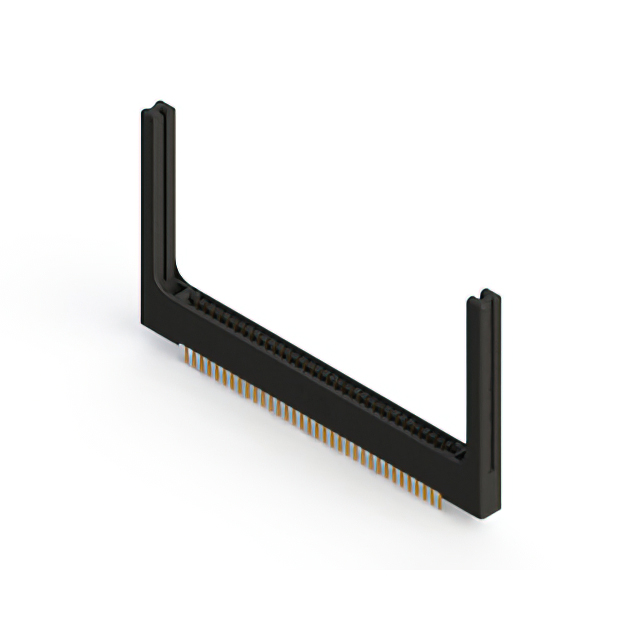

EDAC Inc. 396-068-526-258	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Solder	68 positions	Gold	Non Specified - Dual Edge	Through Hole	3.18 mm	0.125 in	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	Card Guides

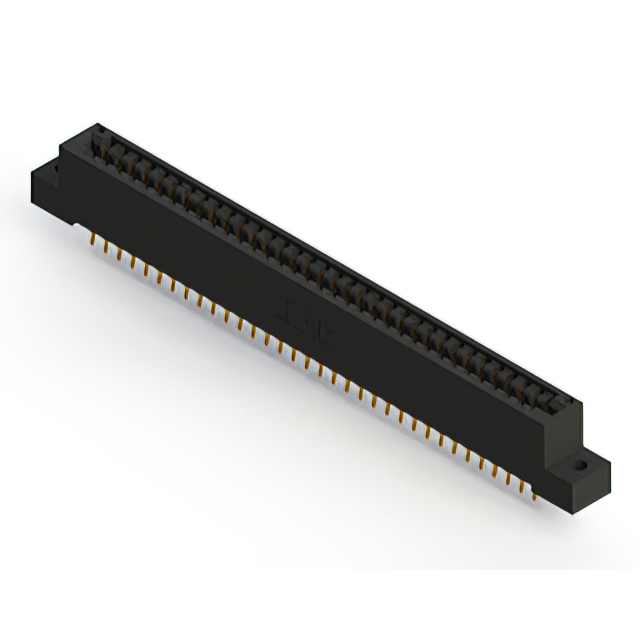

EDAC Inc. 396-068-556-202	2	Polyester Thermoplastic	Dual	2	Copper Alloy	0.25 Ám	10 Áin	Female	Cantilever	Solder	68 positions	Gold	Non Specified - Dual Edge	Board Edge Straddle Mount	3.18 mm	0.125 in	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	34	Card Extender
