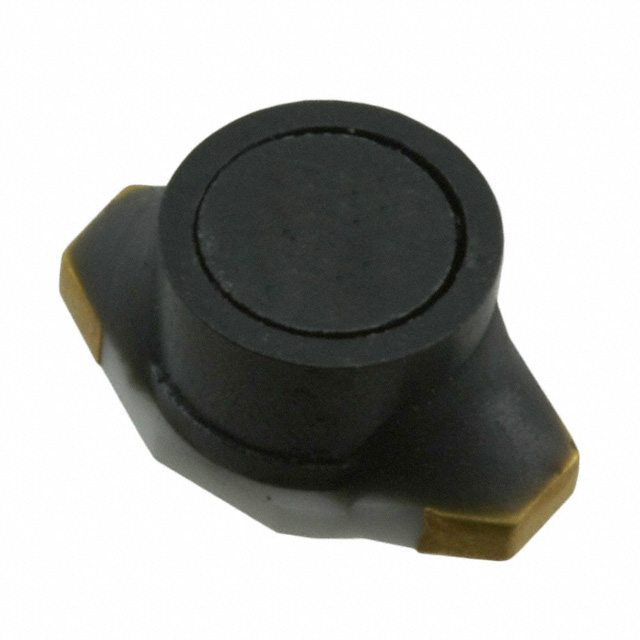

SRR6603 Series

Catalog

POWER INDUCTOR (SMD), 47 ΜH, 500 MA, SHIELDED, 240 MA, SRR6603 SERIES

Part	Material - Core	DC Resistance (DCR) [Max]	Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance Frequency - Test	Current - Saturation (Isat)	Shielding	Current Rating (Amps)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Q @ Freq	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SRR6603-470ML	Ferrite	230 mOhm	Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	240 mA	Shielded	0.5 A	Nonstandard	-55 C	125 °C	20 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in	47 µH	40 100 kHz
Bourns Inc. SRR6603-6R8ML	Ferrite	65 mOhm	Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	580 mA	Shielded	1.2 A	Nonstandard	-55 C	125 °C	50 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in	6.8 µH		200 kHz	40
Bourns Inc. SRR6603-4R7ML	Ferrite		Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	580 mA	Shielded	1.4 A	Nonstandard	-55 C	125 °C	105 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in	4.7 ÁH		200 kHz	40
Bourns Inc. SRR6603-682ML	Ferrite	25 Ohm	Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	19 mA	Shielded	40 mA	Nonstandard	-55 C	125 °C	1 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in			100 kHz	50
Bourns Inc. SRR6603-152ML	Ferrite		Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	35 mA	Shielded	120 mA	Nonstandard	-55 C	125 °C	2 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in	1.5 mH		100 kHz	50	4.2 Ohm
Bourns Inc. SRR6603-1R0ML	Ferrite		Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	1.4 A	Shielded	3 A	Nonstandard	-55 C	125 °C	250 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in	1 µH	30 200 kHz			40 mOhm
Bourns Inc. SRR6603-103ML	Ferrite	32.8 Ohm	Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	17 mA	Shielded	0.02 A	Nonstandard	-55 C	125 °C	800 kHz	6.6 mm	0.173 in	4.4 mm	0.26 in	10 mH		100 kHz	50
Bourns Inc. SRR6603-100ML	Ferrite	75 mOhm	Drum Core Wirewound	20 %	0.118 "	3 mm	Surface Mount	100 kHz	370 mA	Shielded	1 A	Nonstandard	-55 C	125 °C	38 MHz	6.6 mm	0.173 in	4.4 mm	0.26 in	10 µH		200 kHz	40
